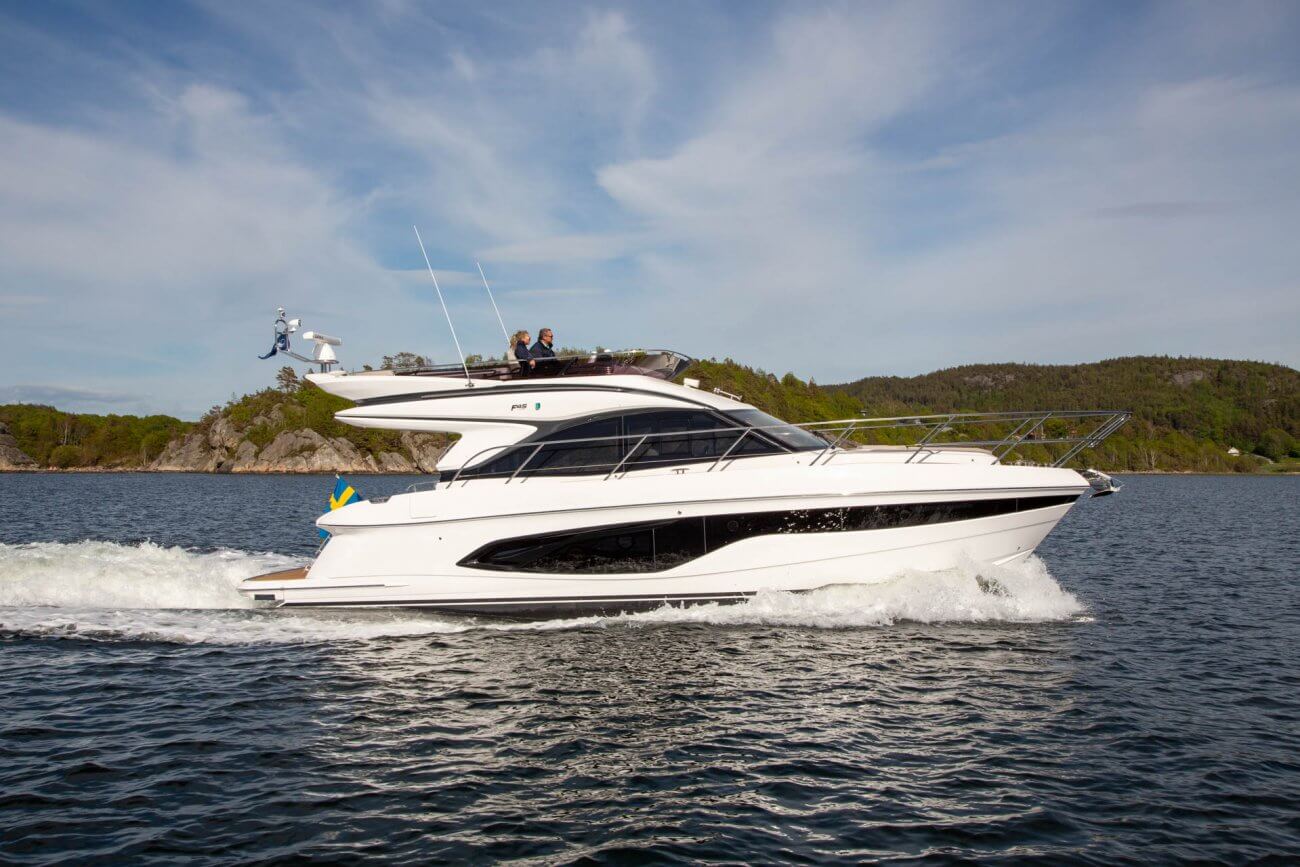

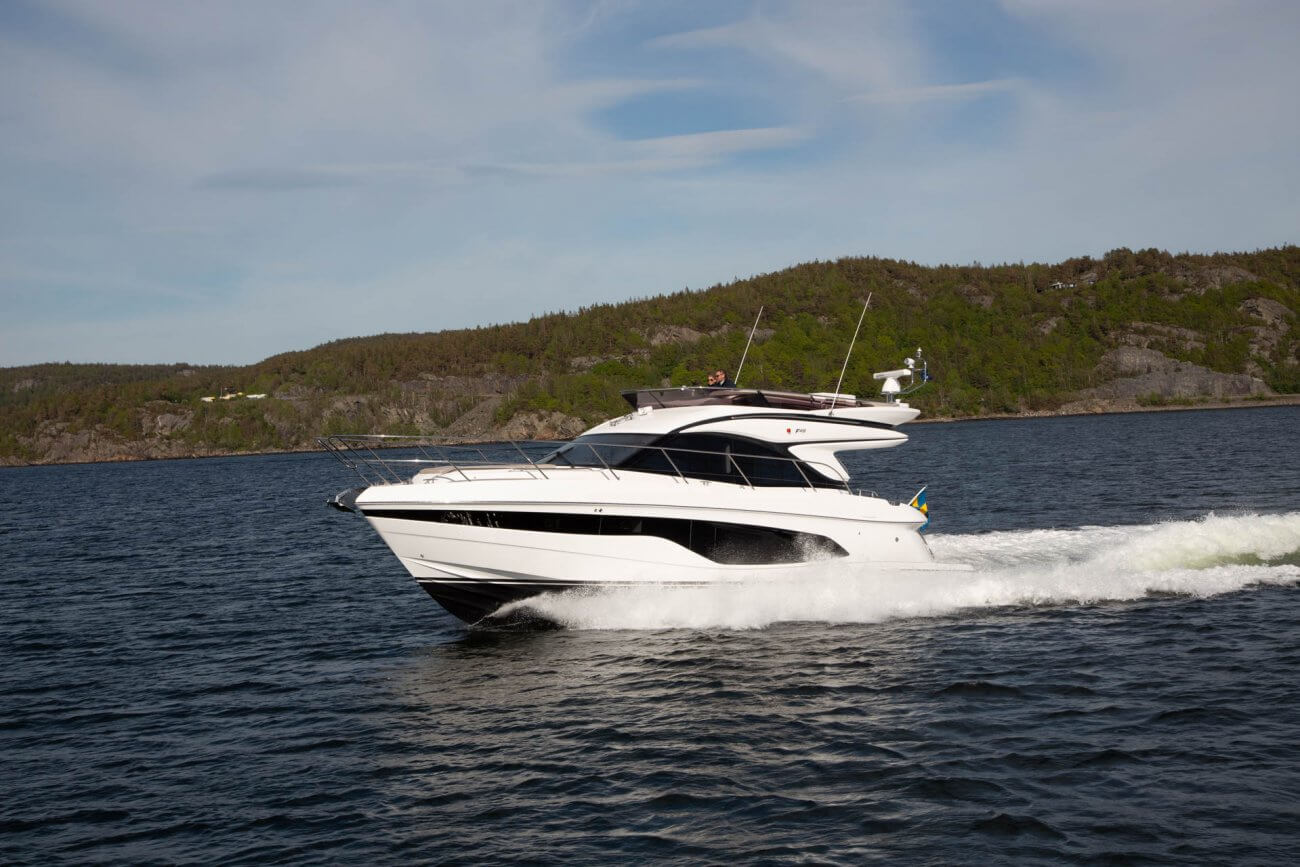

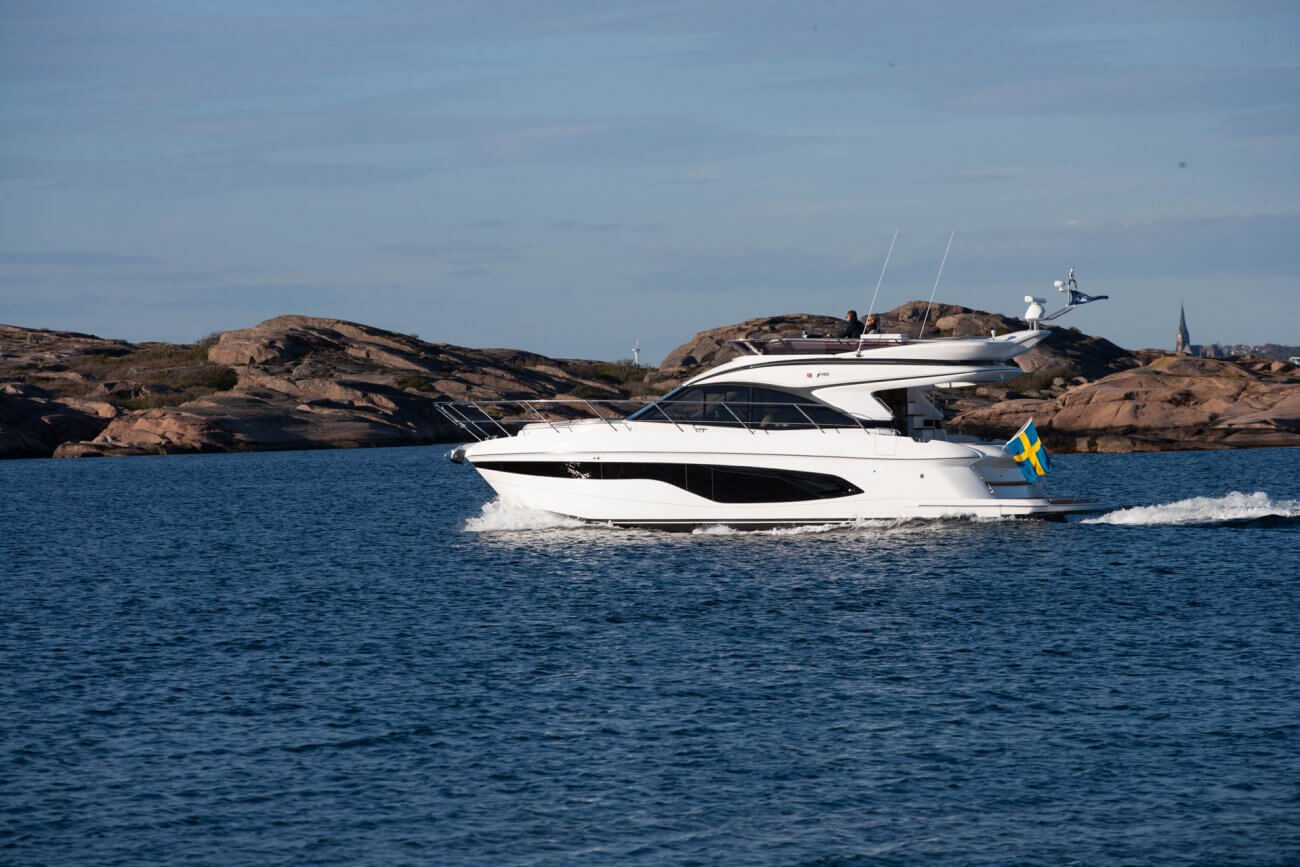

PRINCESS F45

DECK FITTINGS
• Teak-laid transom platform, cockpit deck, flybridge stairway and steps to side decks
• Reversible electric anchor winch with foredeck, main helm and flybridge controls
• Stemhead roller with automatic anchor launch and retrieve
• Self-stowing 20kg/35lbs Delta anchor with 40m of chain
• Deck hatch access to chain locker
• Fender storage
• Stainless steel bow fairleads
• Stainless-steel bow, stern and spring cleats
• Stainless-steel pulpit and guard rails
• Stainless steel coachroof and flybridge handrails
• Foredeck escape hatch
• Foredeck sunbathing area
• PVC rubbing band with stainless-steel insert
• LED deck level lighting

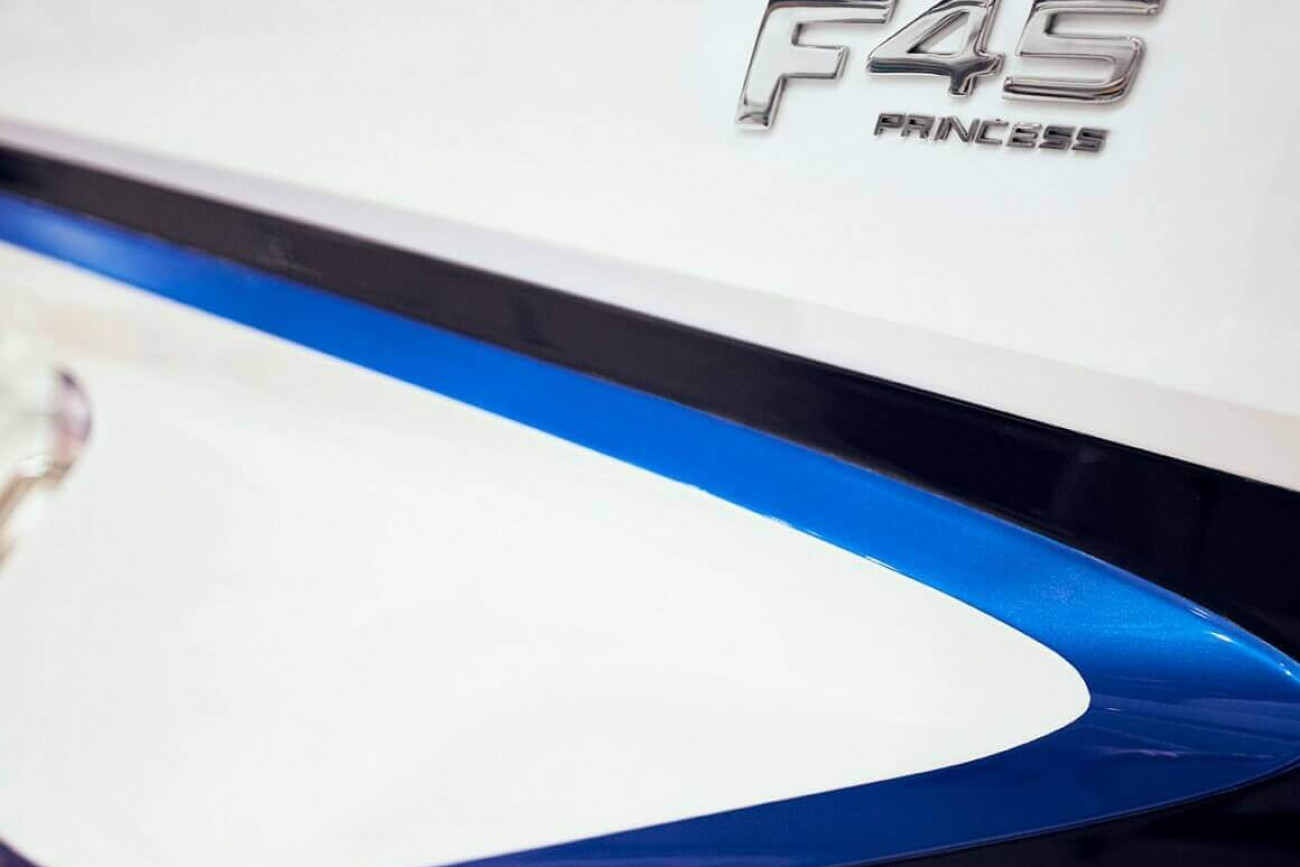

• Illuminated crown logo on transom
• Full set of IMCO navigation lights
• Riding light
• Searchlight with dual station remote controls
• Twin electric horns
• Fuel and water fillers

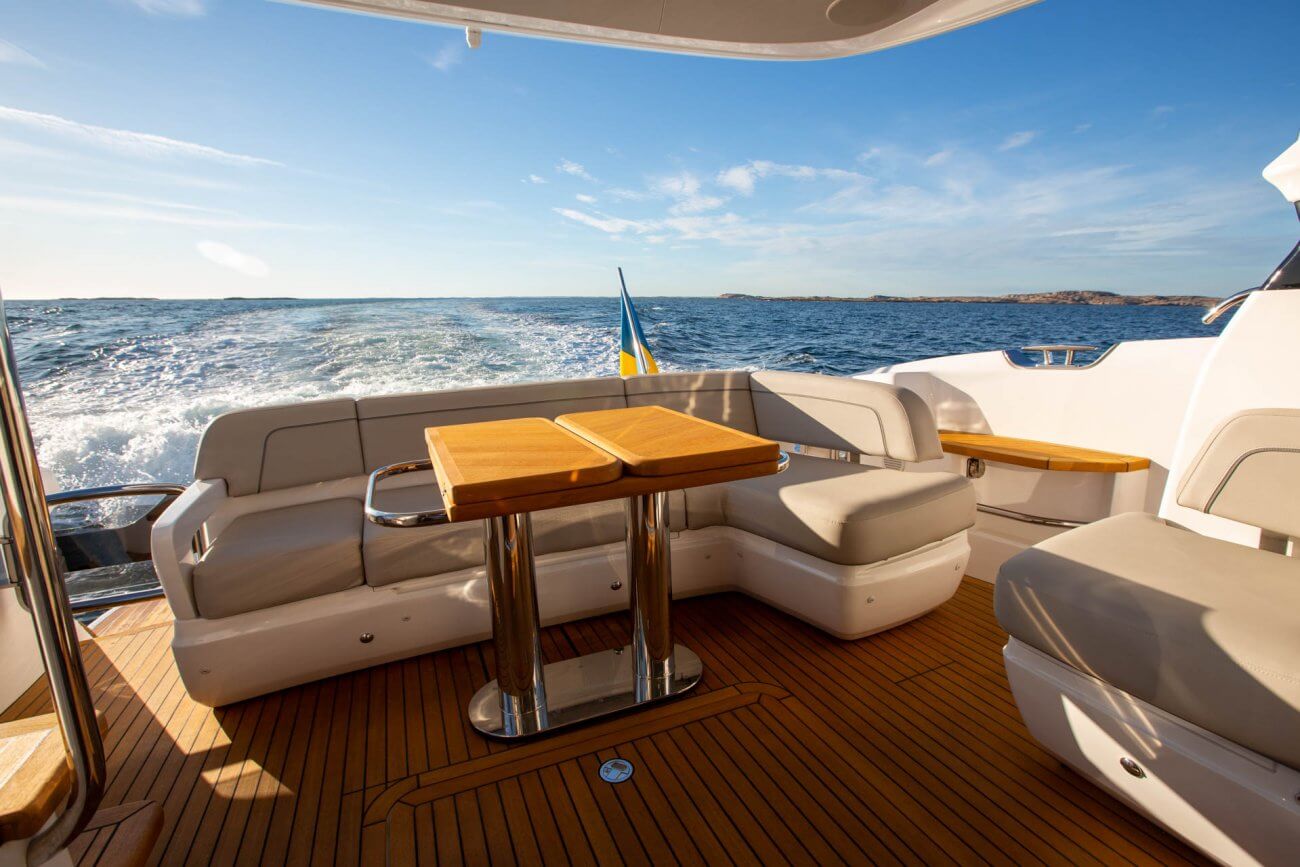

AFT COCKPIT AND BATHING PLATFORM
• Self-draining

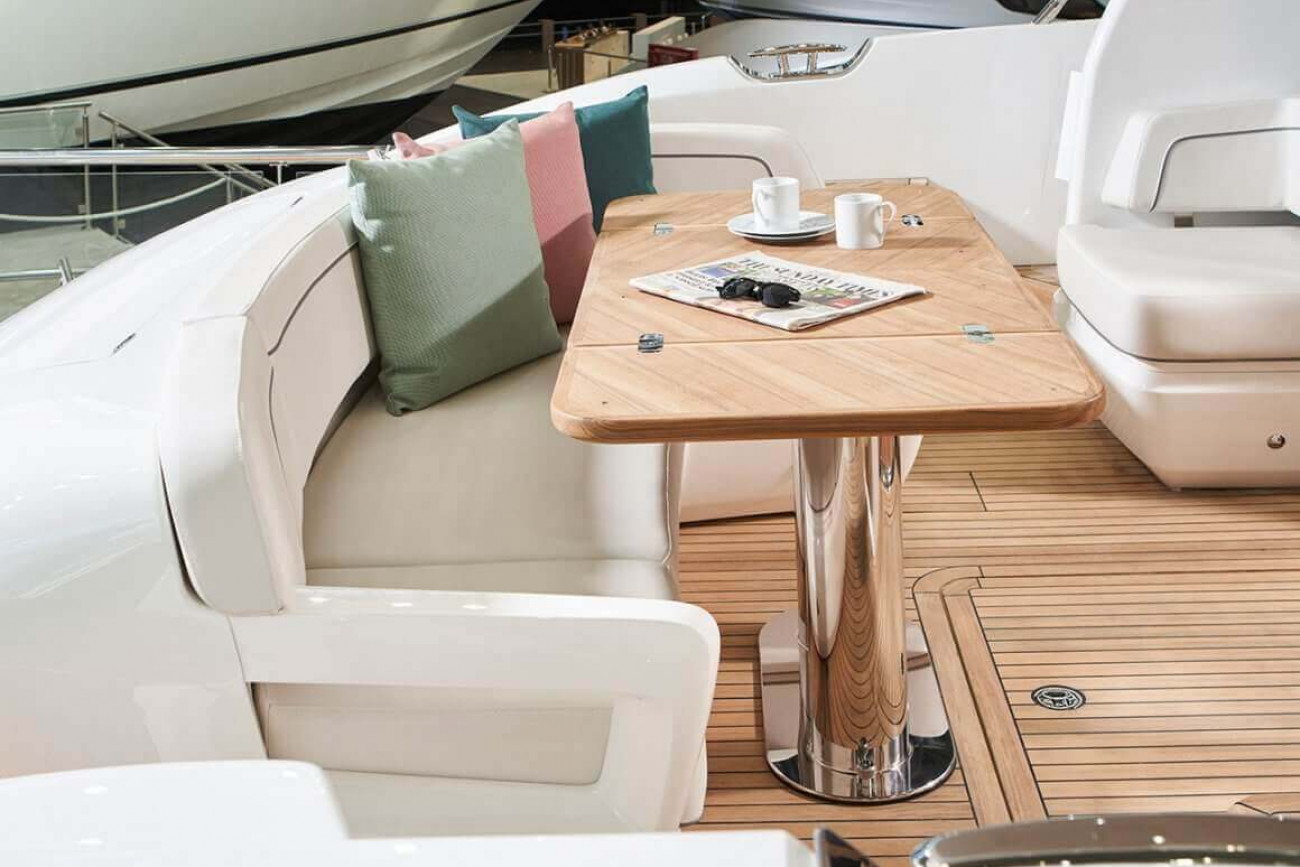

• L- shaped upholstered seating with sliding mechanism
• Teak folding table
• Upholstered aft facing seat
• Transom seat locker
• LED overhead and deck level lighting
• Stainless-steel handrails
• Lockable gas strut assisted hatch to engine room/lazarette
• Liferaft stowage locker
• Open rope storage lockers
• Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
• Integral stairway to flybridge with teak step treads
• Transom gates leading to bathing platform
• Transom bathing platform with foldaway swimming ladder (will fit a tender up to 2.9m)
• Optional Electro-hydraulic raise/lower mechanism for transom platform (suitable for a tender up to 400kgs) including dinghy chock system

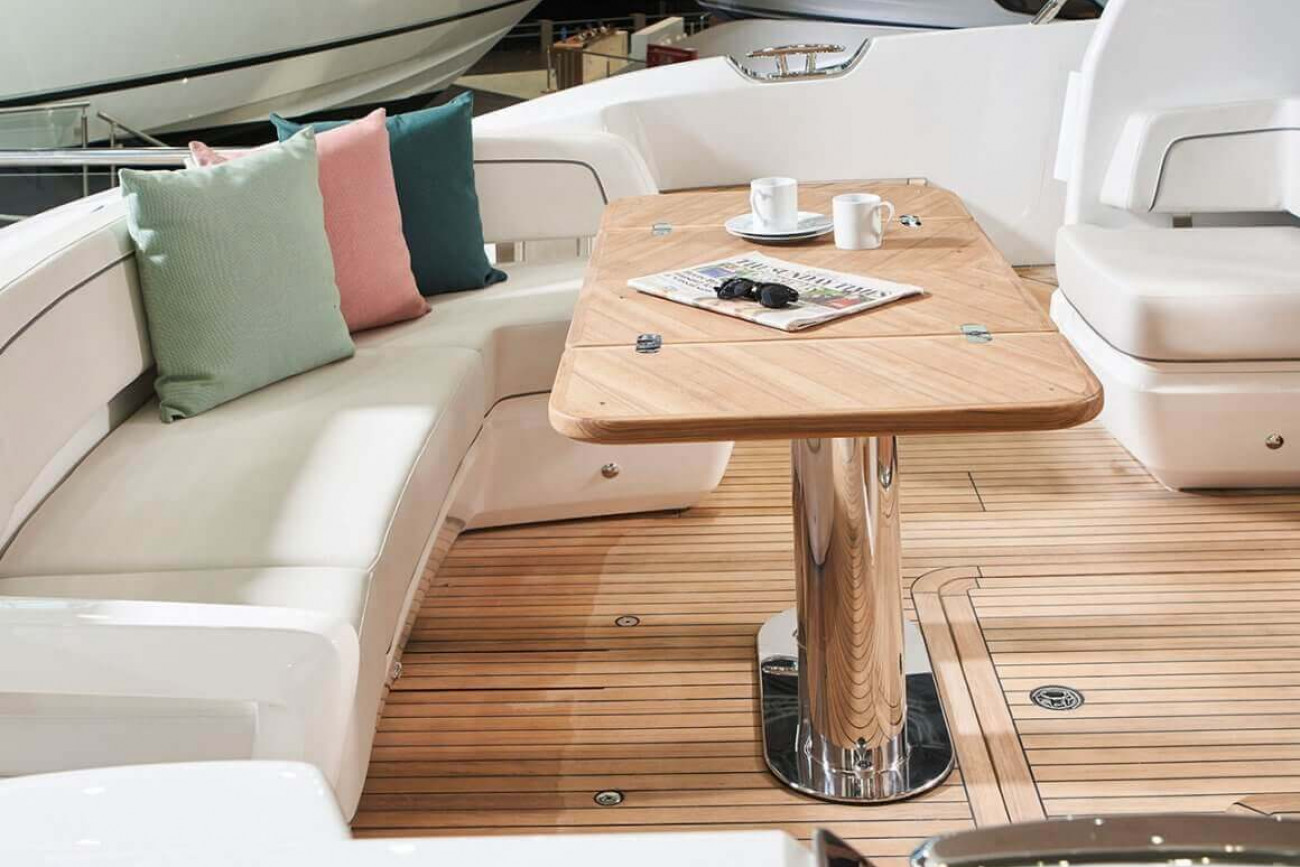

• Optional cockpit sofa to have powered sliding mechanism with infill cushion (increase length of cockpit by 400mm), includes sliding tender check system allowing powered cockpit seat to move into aft position without deploying tender
• 220/240v shore support inlet
• Hot and cold transom shower
• Cockpit cover

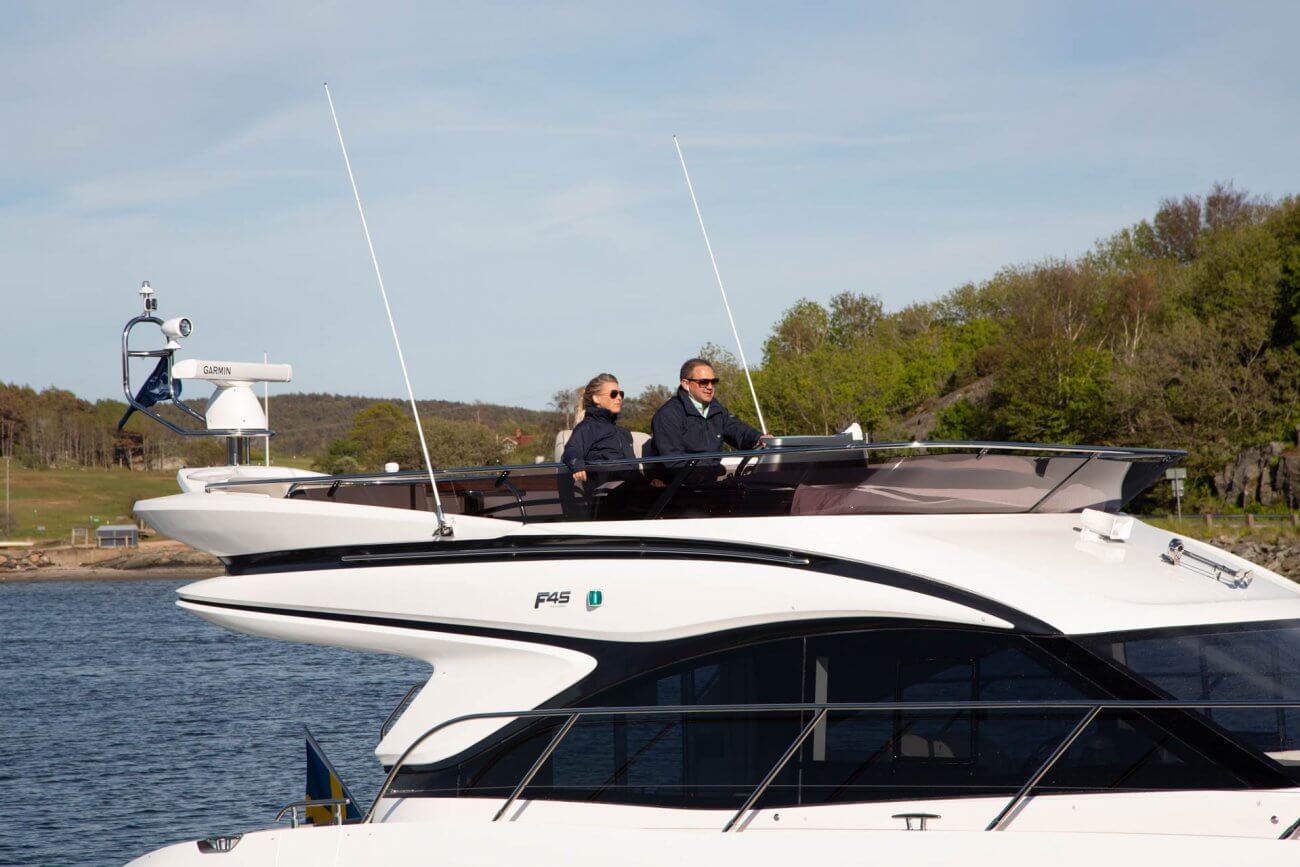

FLYBRIDGE
• Dual station instruments and controls (see Lower Helm Position)
• Autopilot controls
• Adjustable steering wheel
• Audible and visual alarm for bilge pumps and water in fuel
• Twin helm seats with fore and aft adjustment for helmsman
• Large U-shaped upholstered seating
• L-shaped seat (converts to sunbed)
• Folding teak table
• Waterproof speakers (2) linked to saloon audio system
• Clear view hatch to aft cockpit
• Wind deflector screens
• Stainless-steel handrails
• LED deck level lighting
• Wireless waterproof phone charger

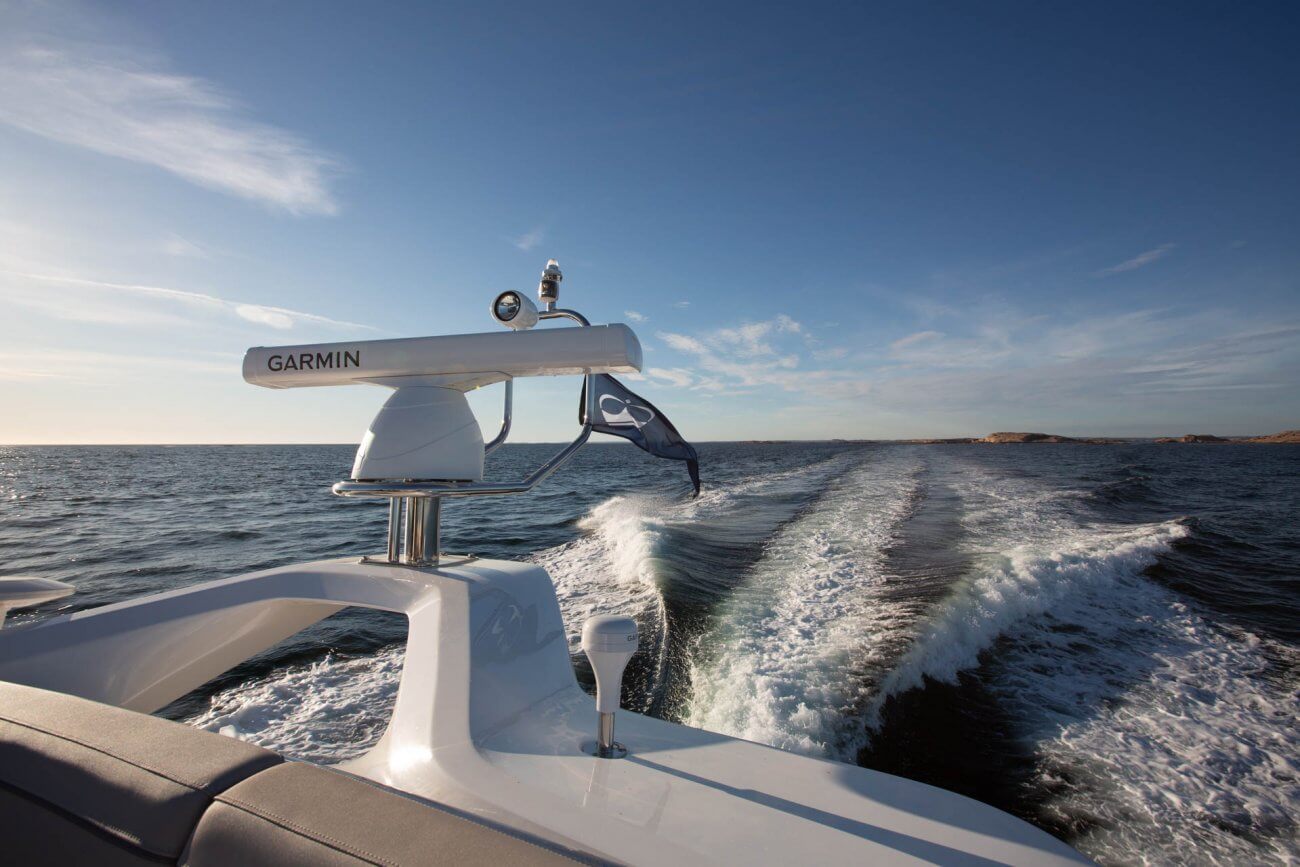

• GRP radar arch
• Console and seat covers
• Twin matching Whip Aerials with one dedicated for VHF R/T functionality and one dummy FM/AM Aerial for aesthetic purposes only

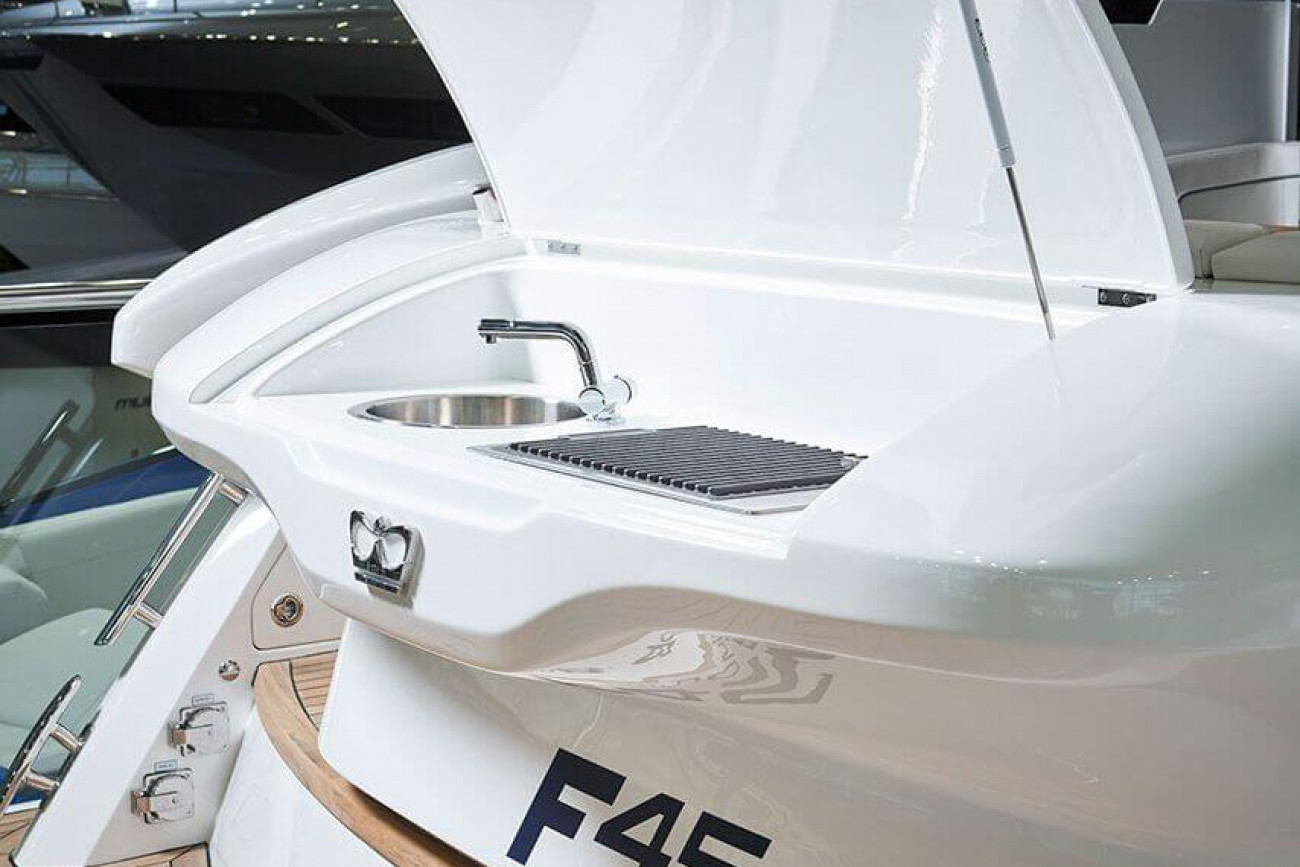

• Optional wetbar with electric barbecue with refrigerated top loading coolbox
• Optional bimini

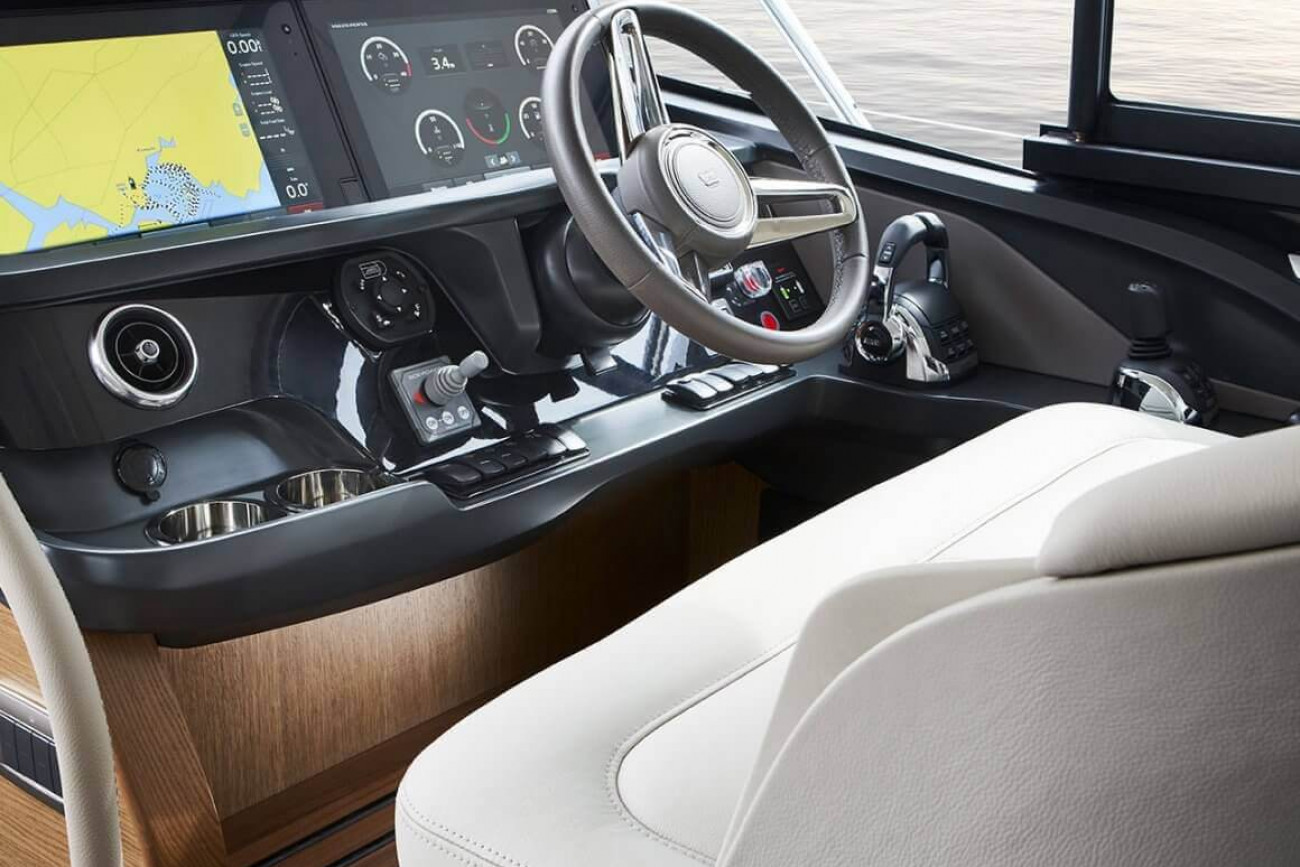

LOWER HELM POSITION

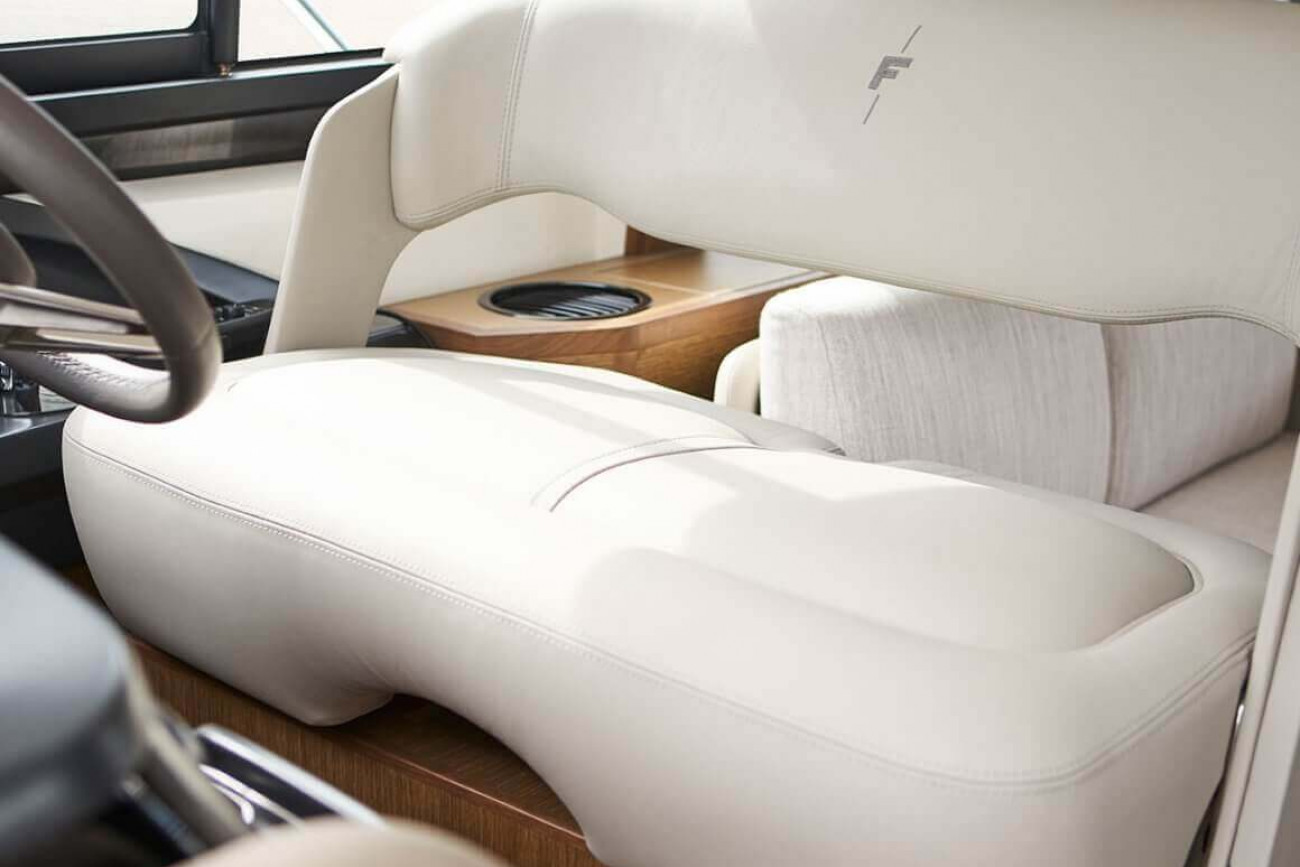

• Double helm seat with fore and aft adjustment

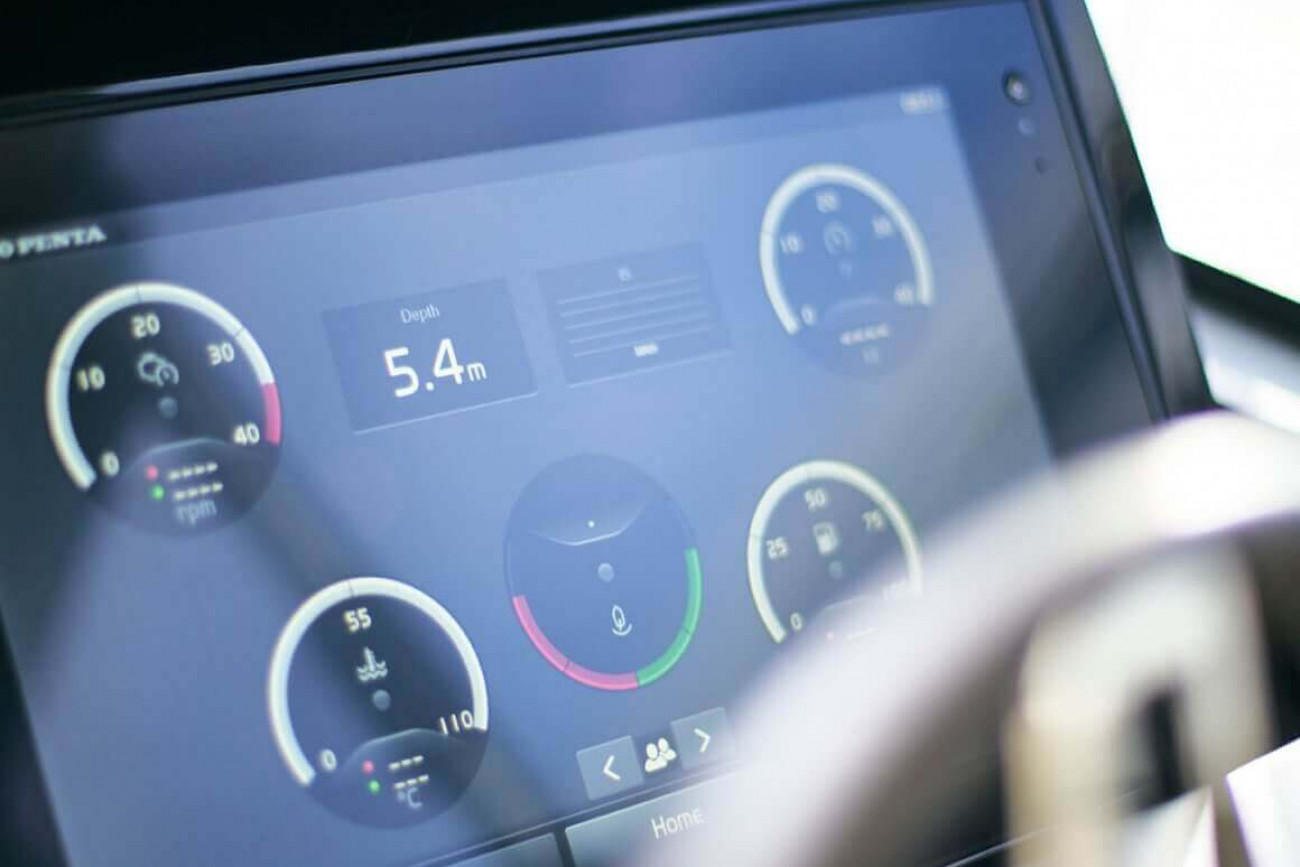

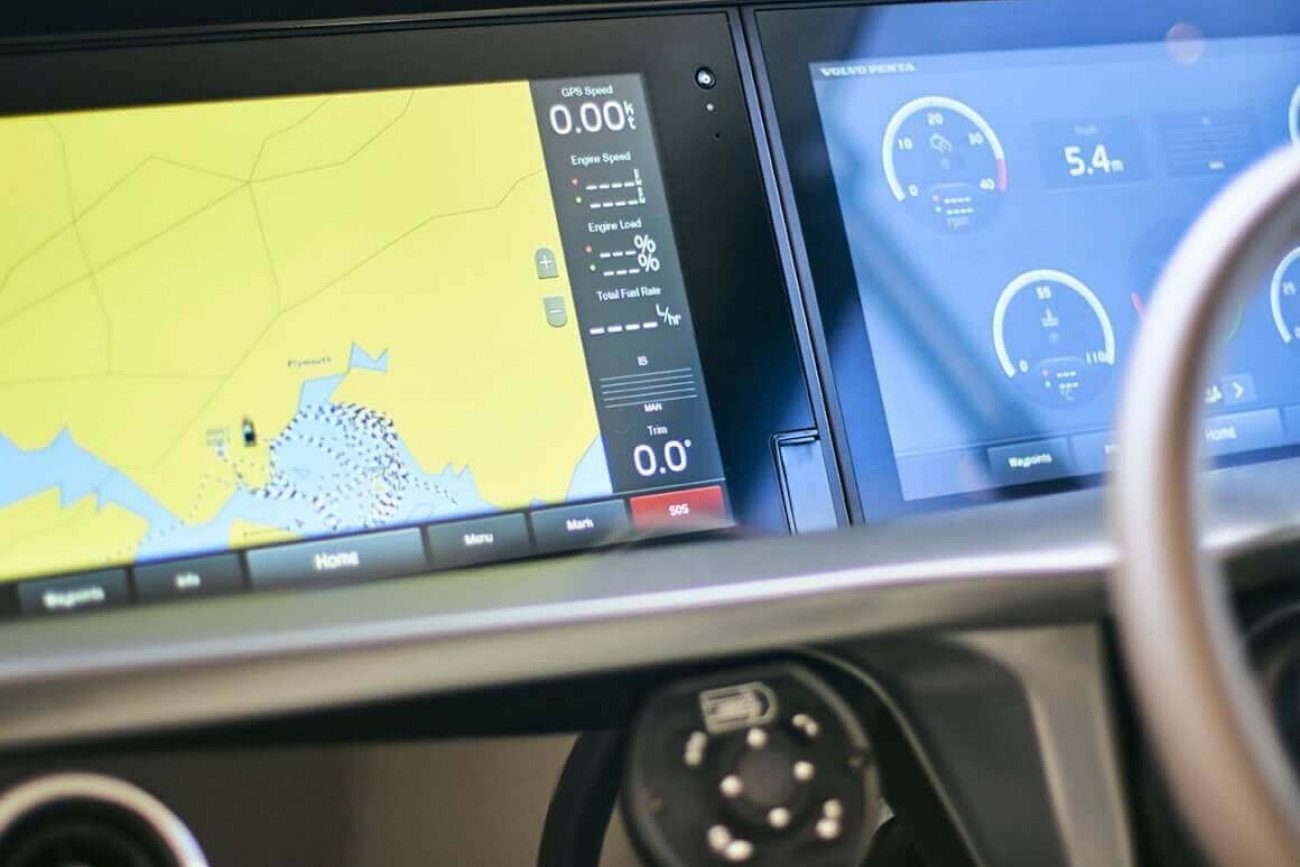

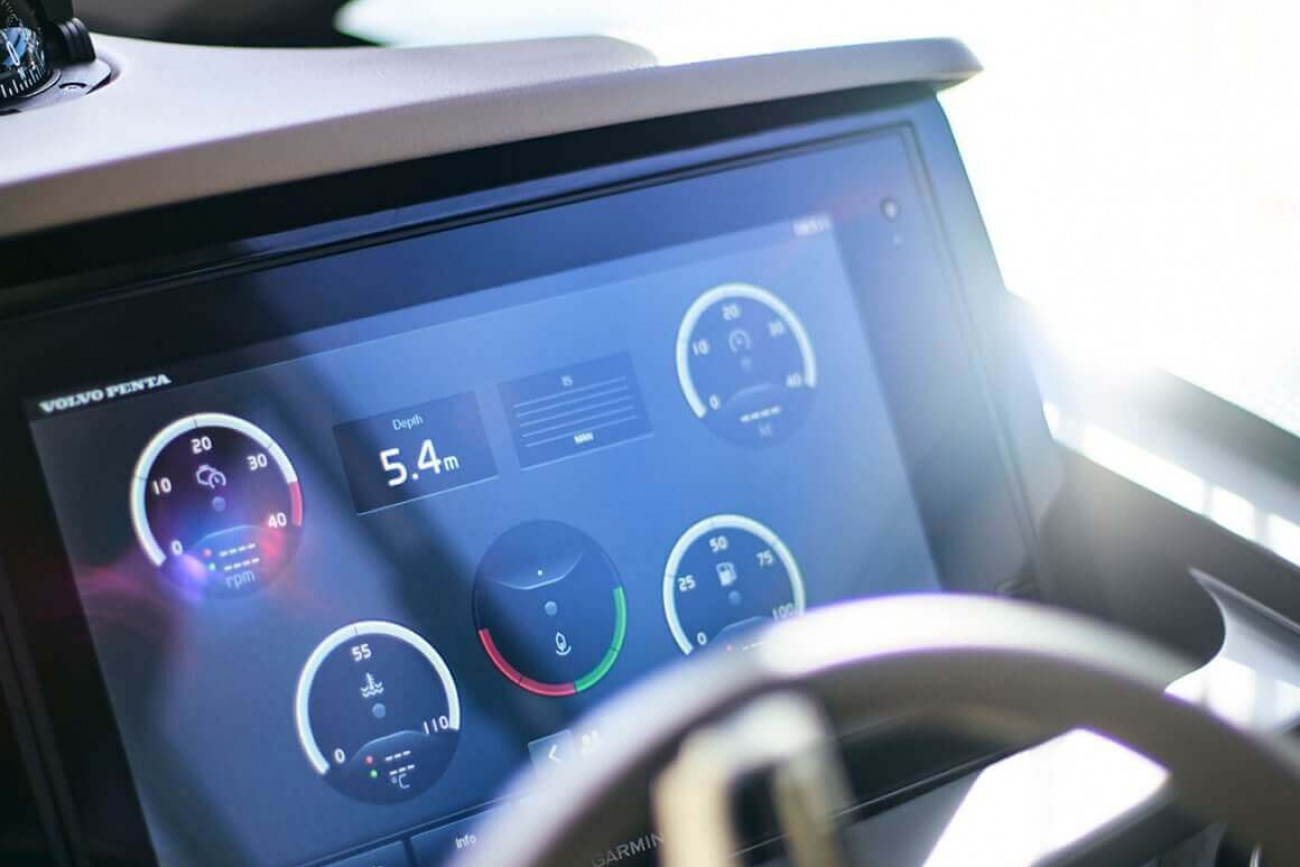

• Console with 16” Volvo/Garmin screen displaying engine instrumentation and chart plotter (either individual or combined)
• Dual station instruments and controls at Flybridge and Lower Helm Positions:
• power-assisted electro-hydraulic steering

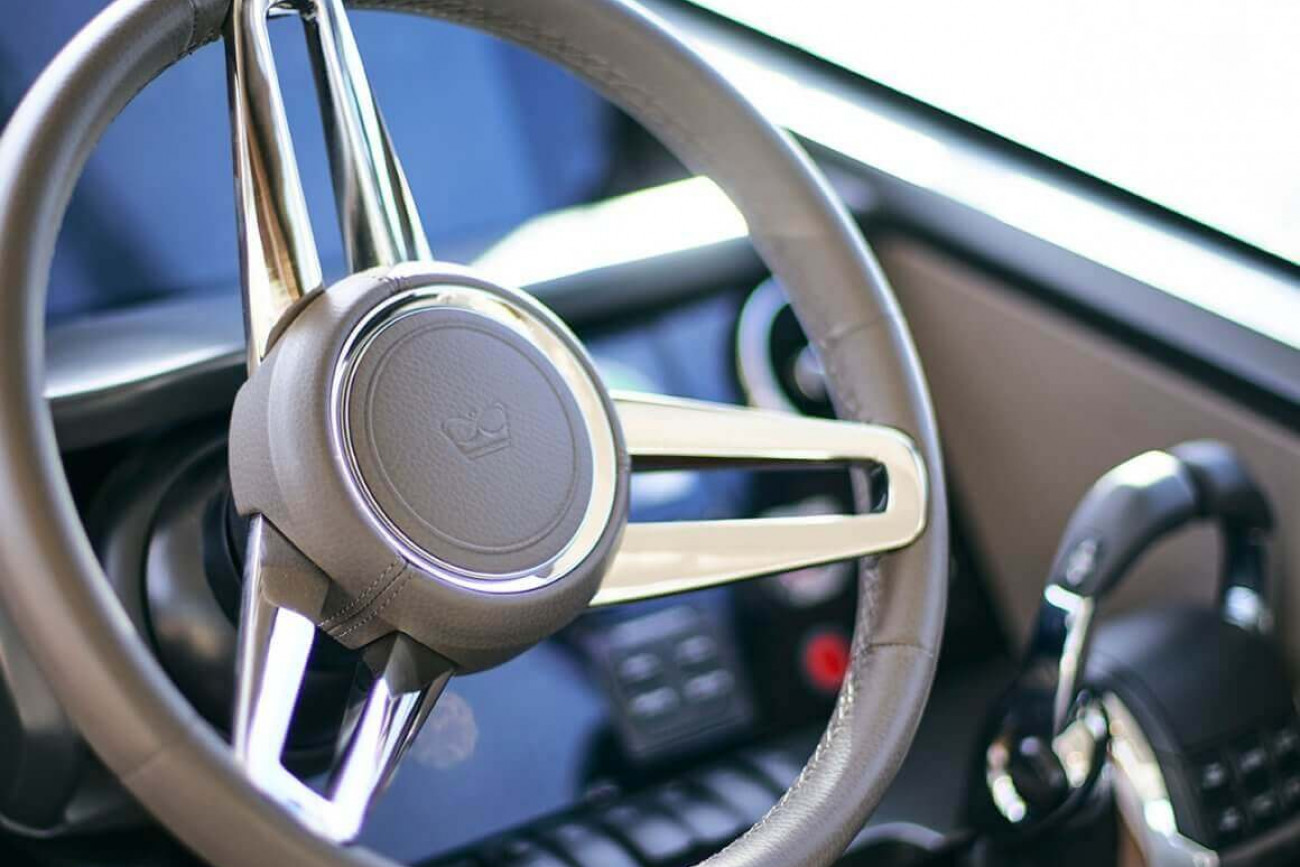

• adjustable steering wheel
• rudder position indicator
• high-speed magnetic compass
• electronic engine controls
• joystick control
• trim tab controls with indicators
• electric anchor winch remote control
• audible and visual engine warning system, autopilot, speed and distance log and echo sounder with alarm
(incorporated into 16” Volvo/Garmin screen)
• VHF with DSC R/T with intercom
• remote control searchlight
• horn button
• Drinks holders
• Toughened glass screen (clear for night vision)
• Windscreen wipers with freshwater windscreen wash
• Black mesh sunscreens
• Bilge pump controls with visual pump running warnings
• 24v and 240v electrical control panel
• Riding light, helm and navigation light control switches
• USB outlet
• Wireless phone charger
• LED overhead lighting (24V) and night lighting
• Sliding tinted side window adjacent to helmsman
• Fitted carpet

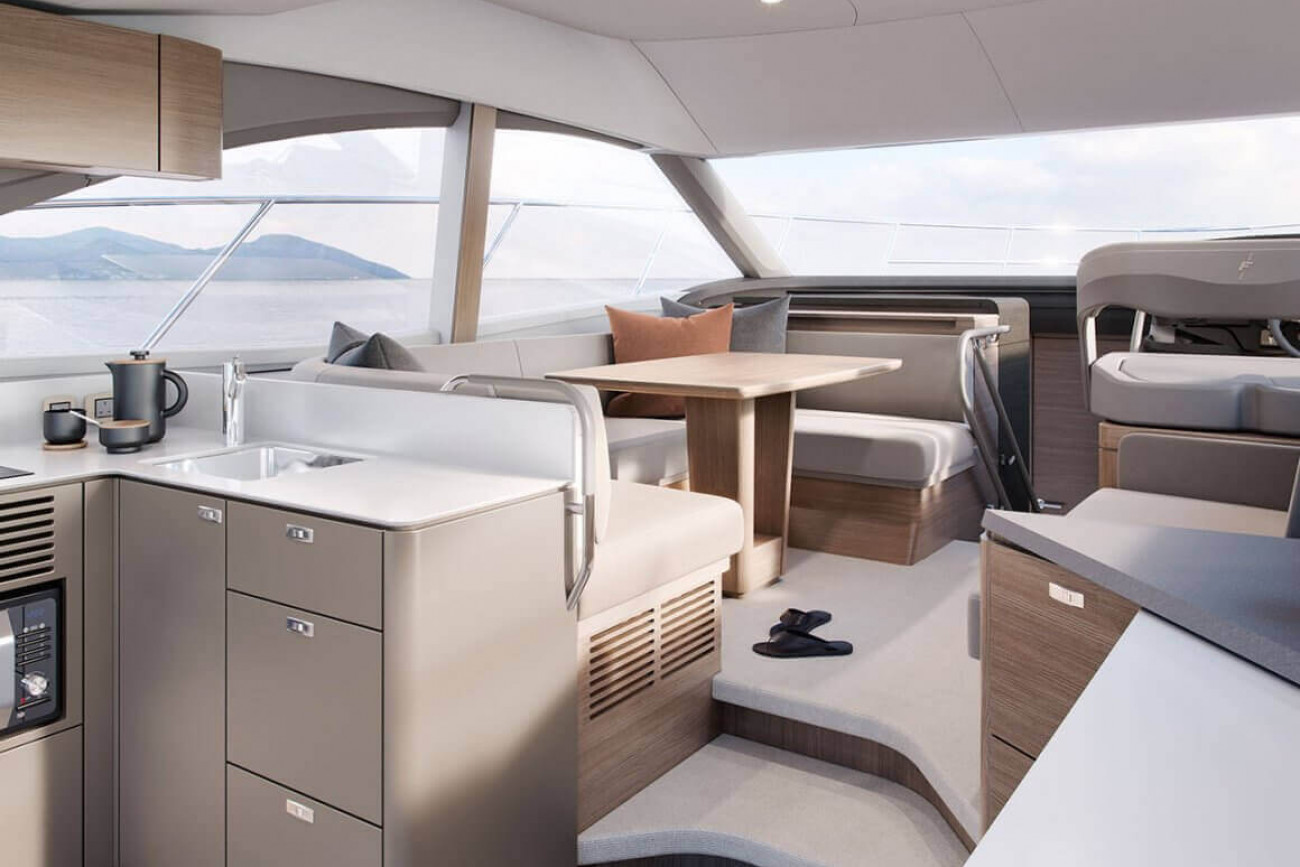

DECK SALOON
• Triple stainless-steel framed sliding doors to cockpit
• U-shaped sofa with dining table to port (option for double berth conversion)
• 2-seater sofa
• Drawer storage below sofas
• Fusion audio system paired with speakers(2)
• Venetian or Skysol blinds to all windows and doors
• LED overhead lighting (24V)
• Access stairway to lower accommodation
• Fitted carpet

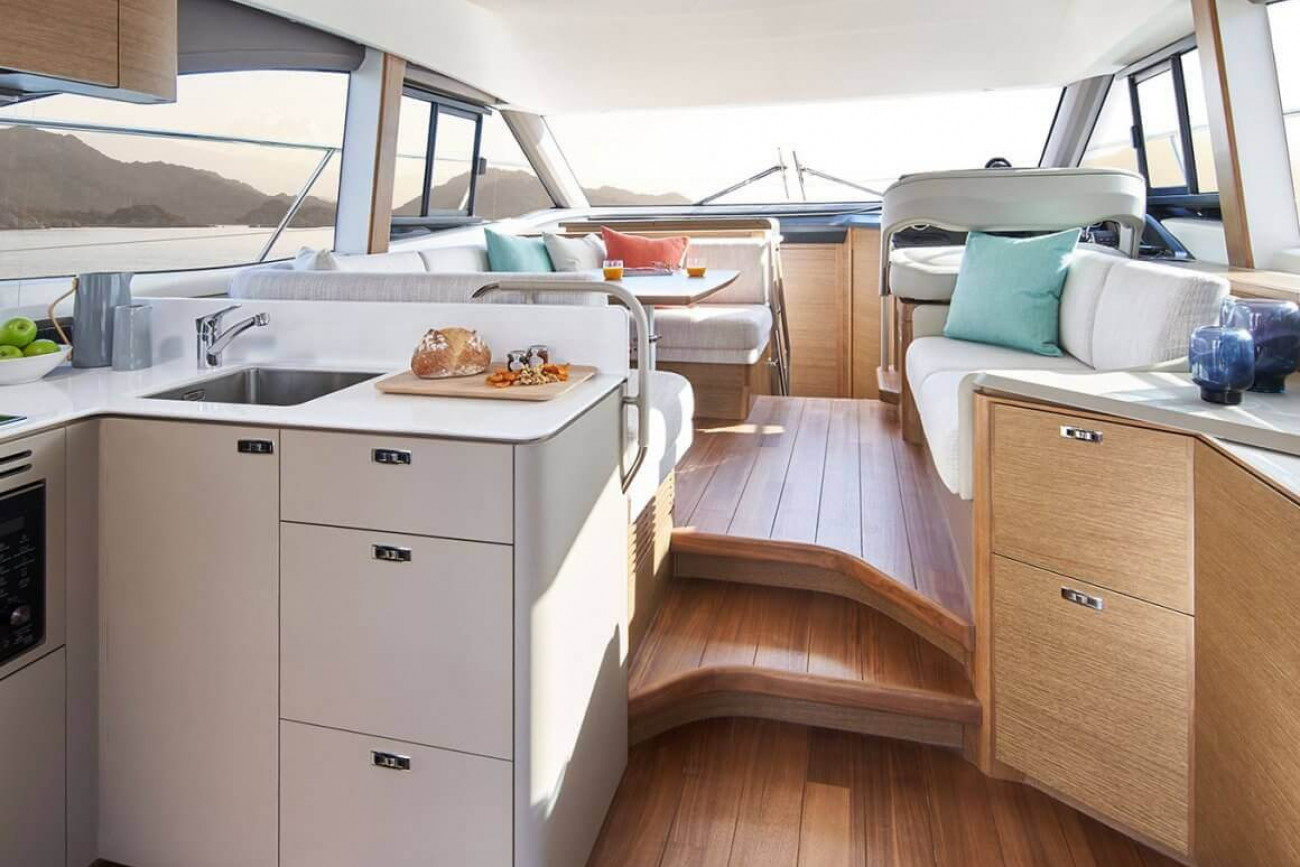

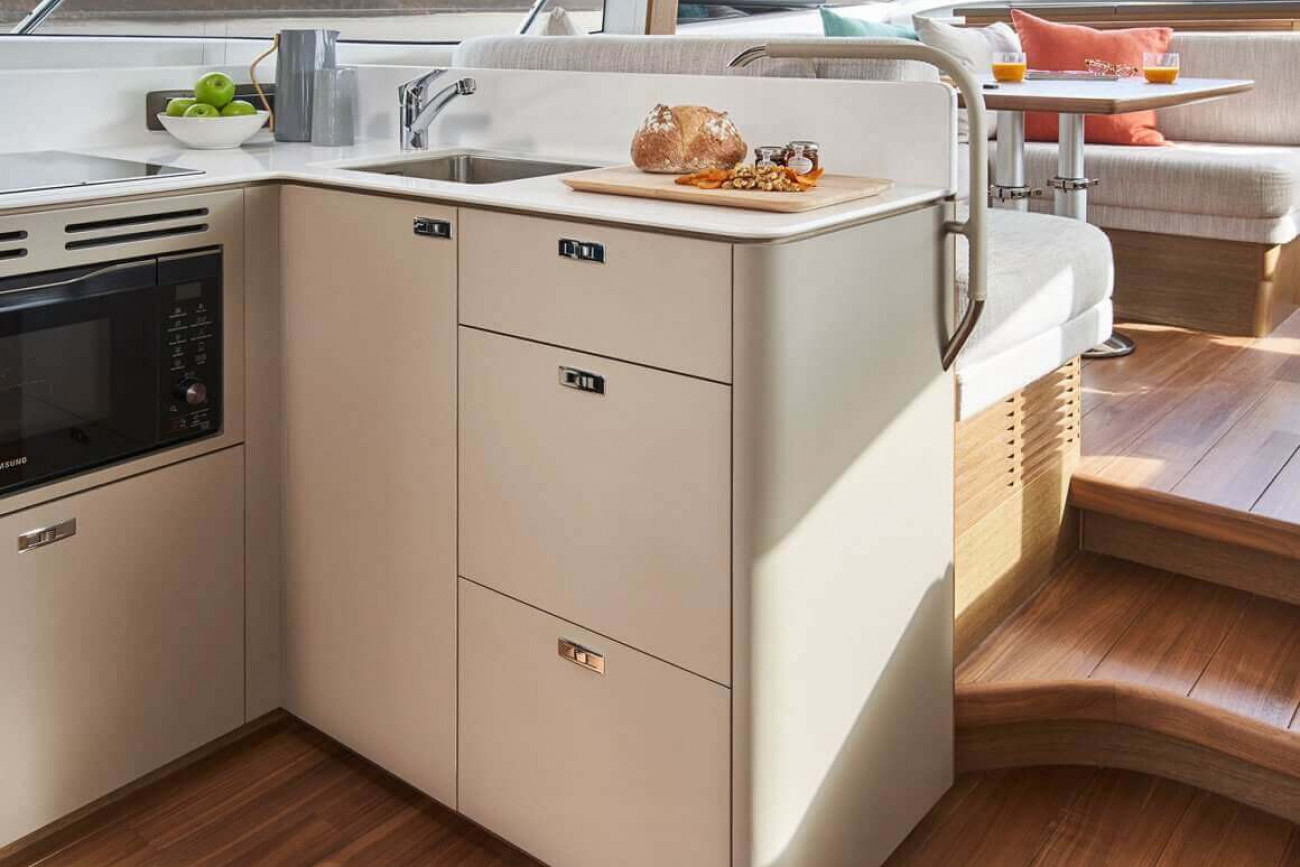

GALLEY

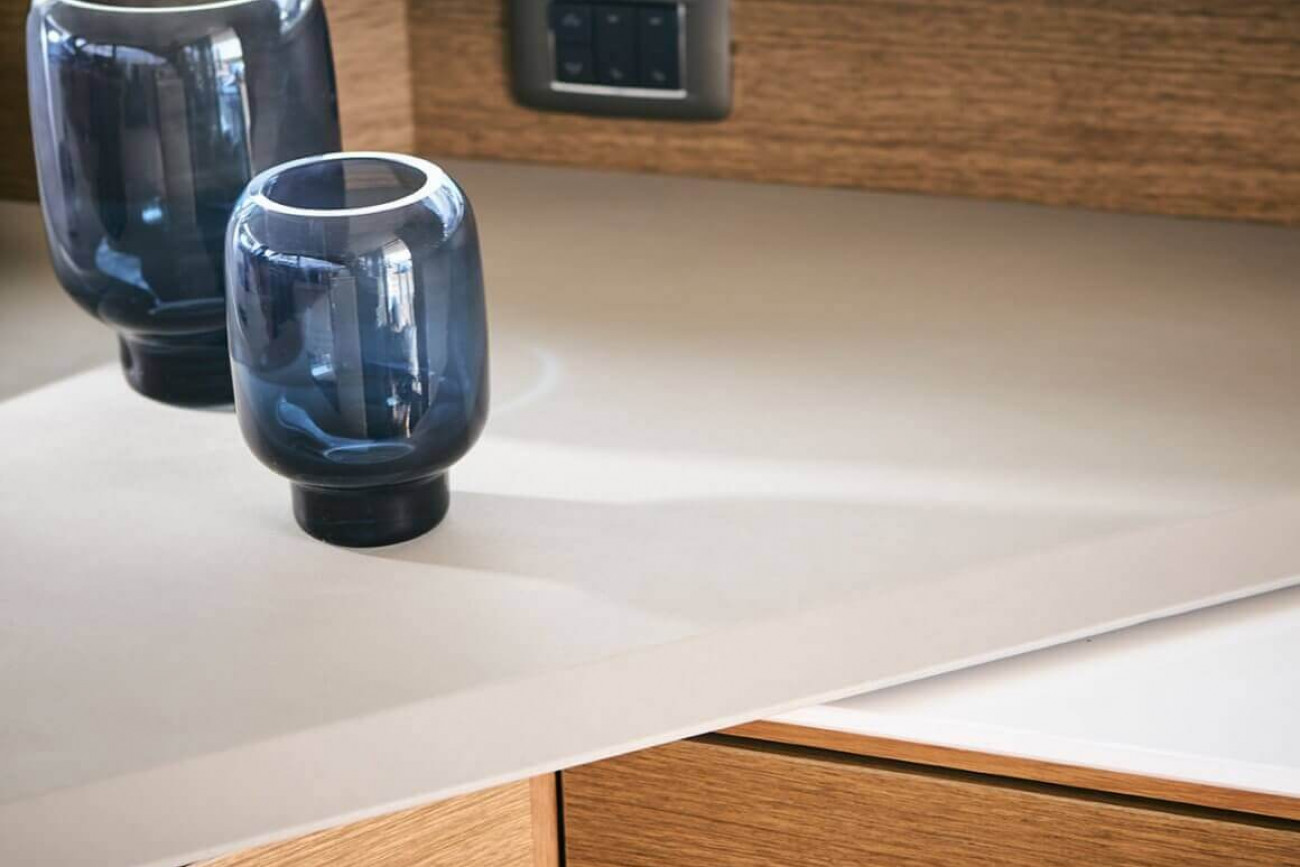

• Solid Surface worktop
• 3-zone diesel fuelled hob
• Hob extractor
• Combination microwave/convection oven with grill
• Stainless-steel sink with mixer tap
• Twin refrigerator with removable freezer compartments
• Waste bin
• Chopping board
• Drawers and storage cupboards
• Venetian blinds to window
• LED overhead and task lighting (24V)
• 220/240v outlets
• Provision for dishwasher
• Timber flooring

ACCOMMODATION
• All cabins and bathrooms feature opening portholes
• All cabins feature 220/240v power points
• All bathrooms feature electric freshwater toilets and 240v shaver points

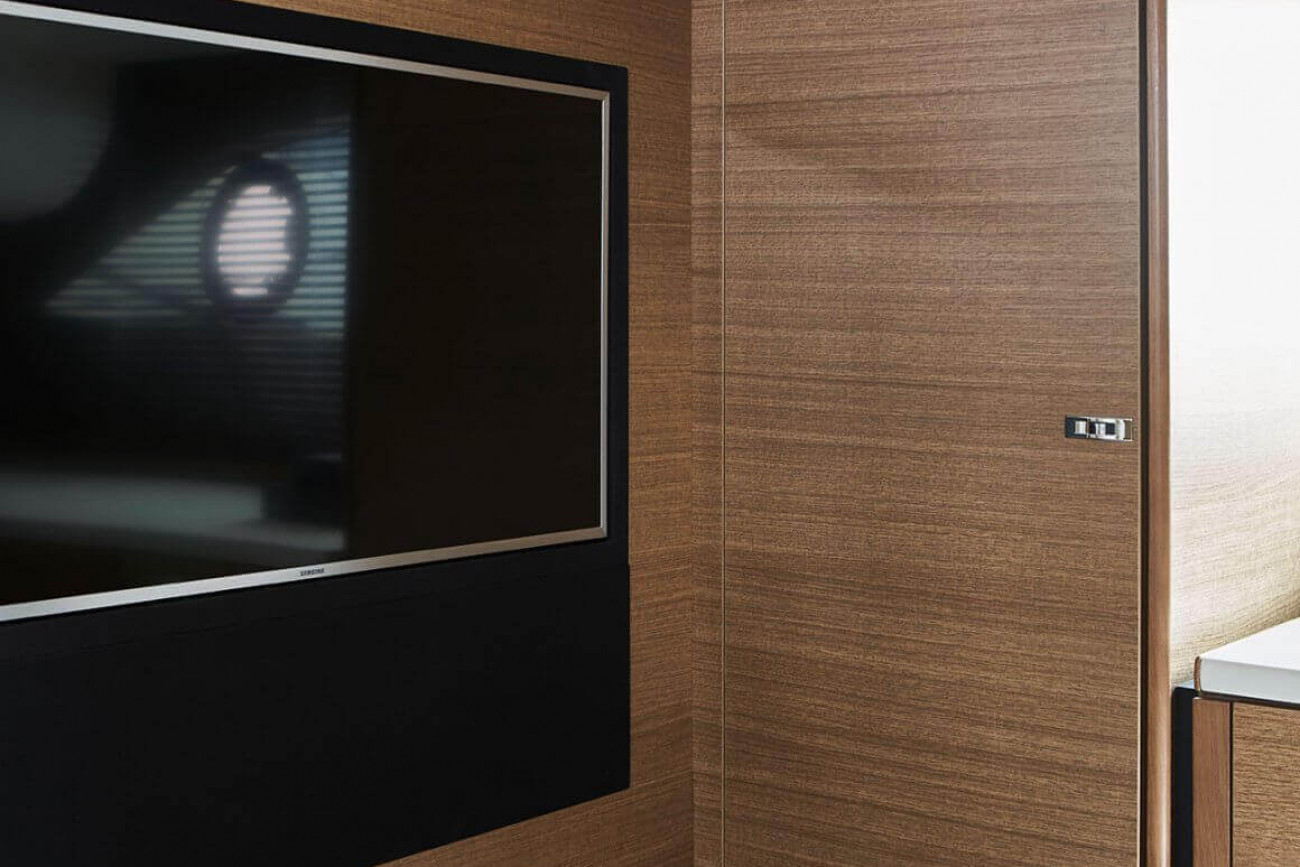

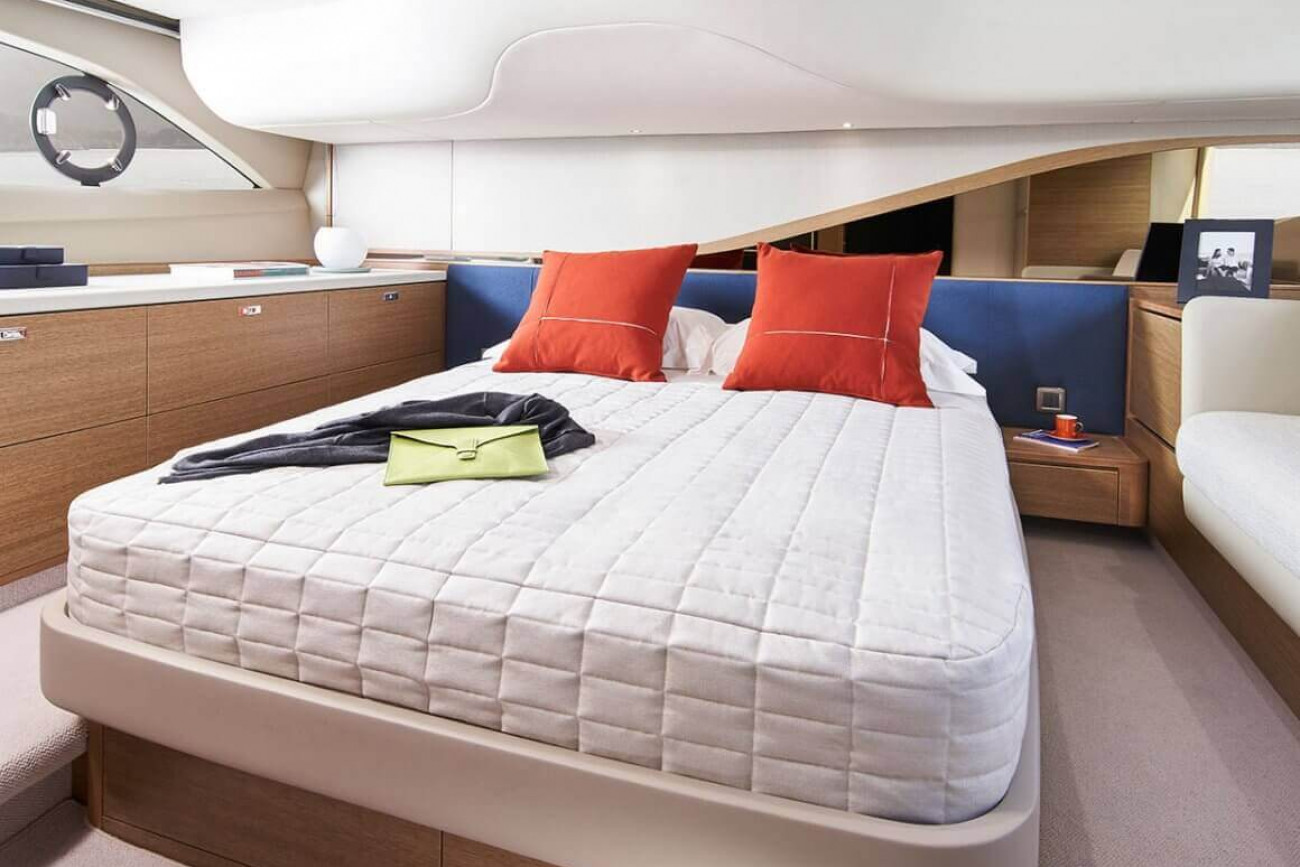

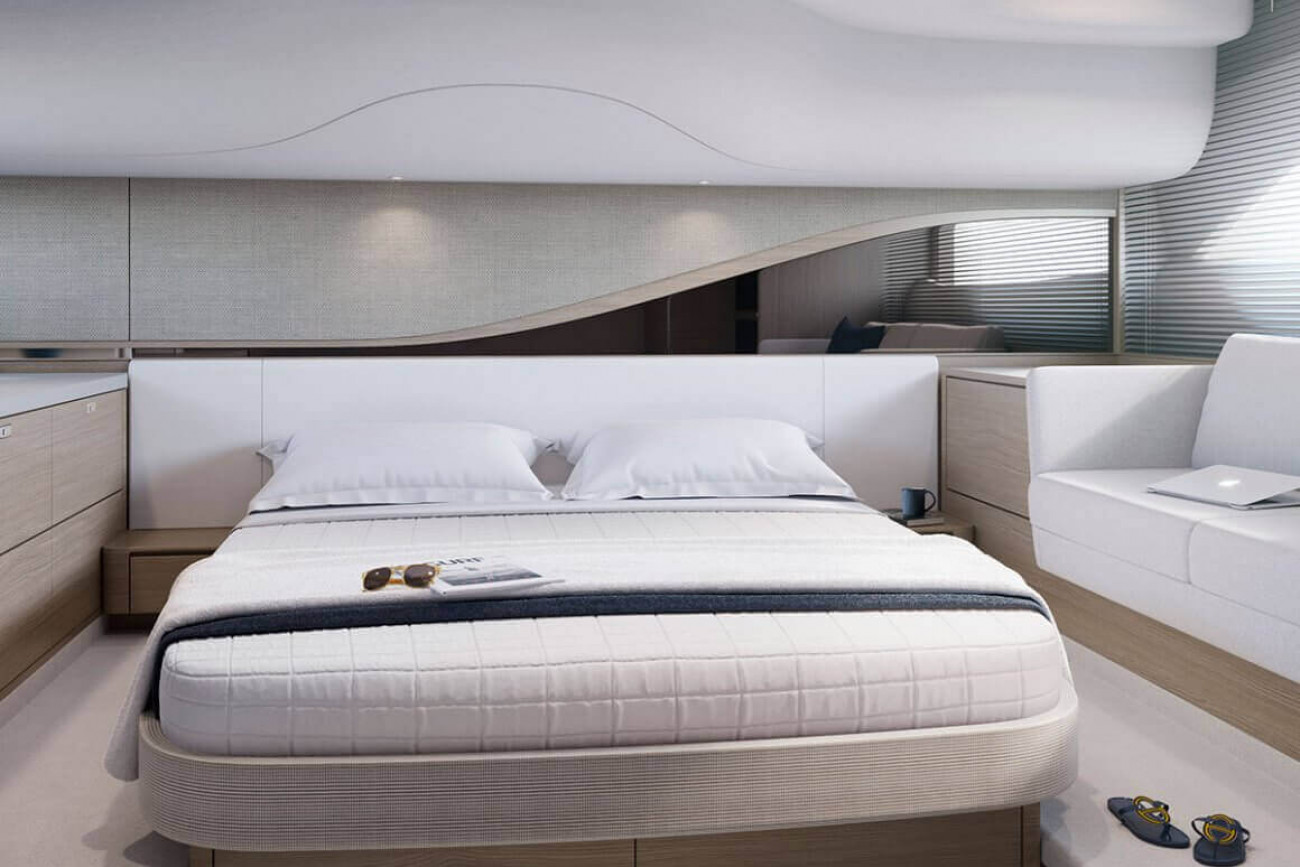

MASTER STATEROOM
• Large double bed with drawers below
• Bedside table
• Wardrobes with shelves
• Mirror
• Sofa
• Storage lockers and drawers
• Panoramic windows including opening portholes with venetian blinds
• LED overhead (24V)
• Individual berth lights
• 220/240v outlets (2)
• USB connection point
• Fitted carpet

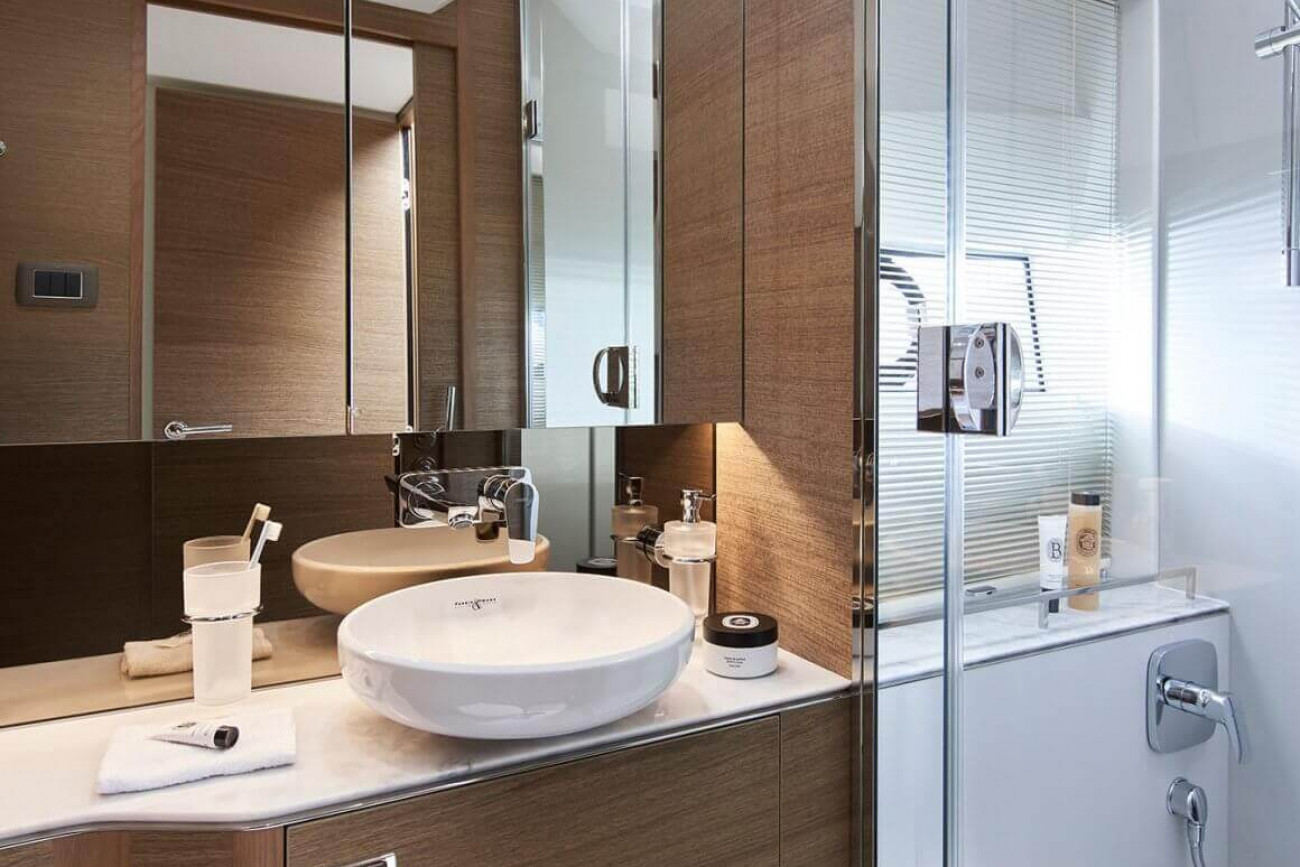

EN-SUITE BATHROOM
• Washbasin with Solid Surface worktop
• Mirror
• Storage lockers
• Shower compartment with automatic pump out
• Extractor fan
• Opening porthole and venetian blind
• LED overhead and concealed lighting (24V)
• Bathroom accessories
• Flooring in Solid Surface

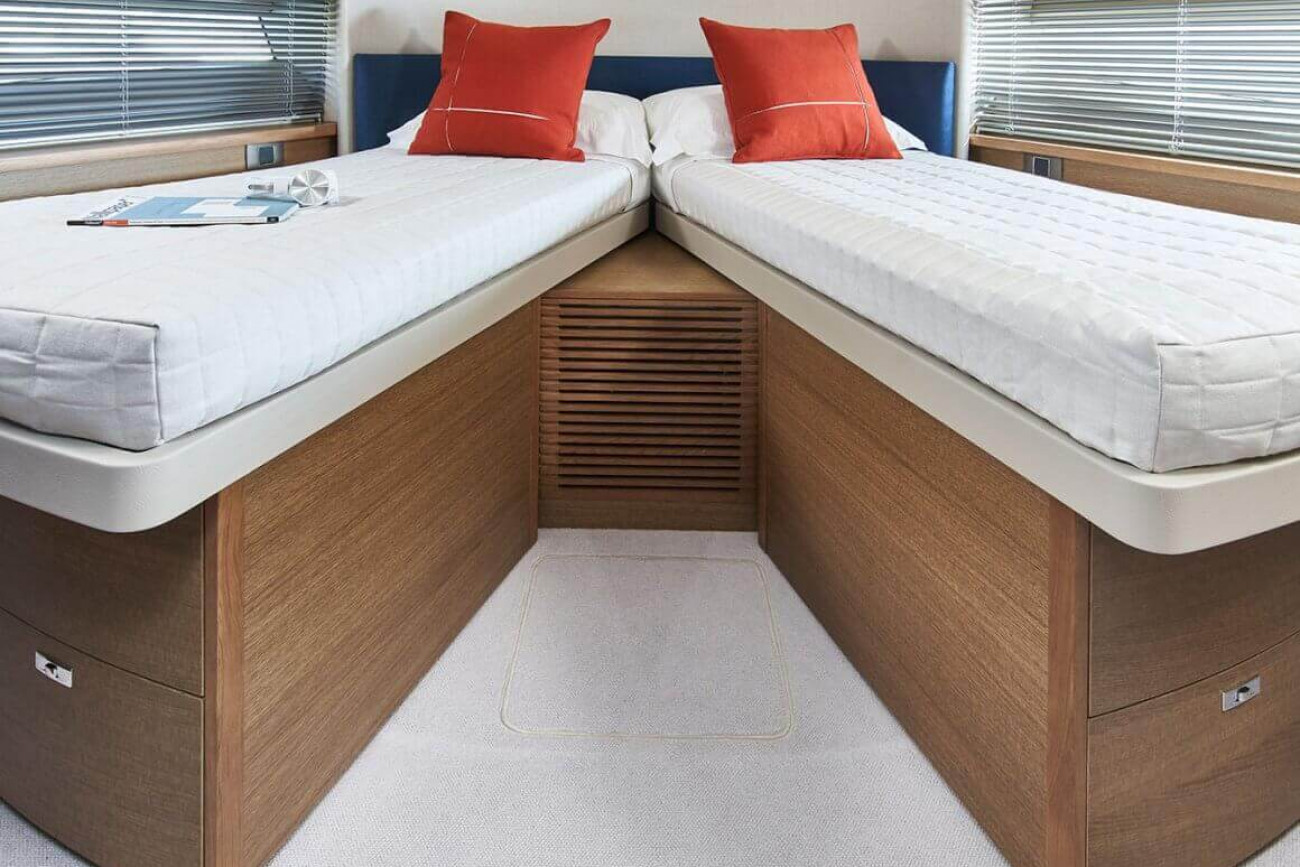

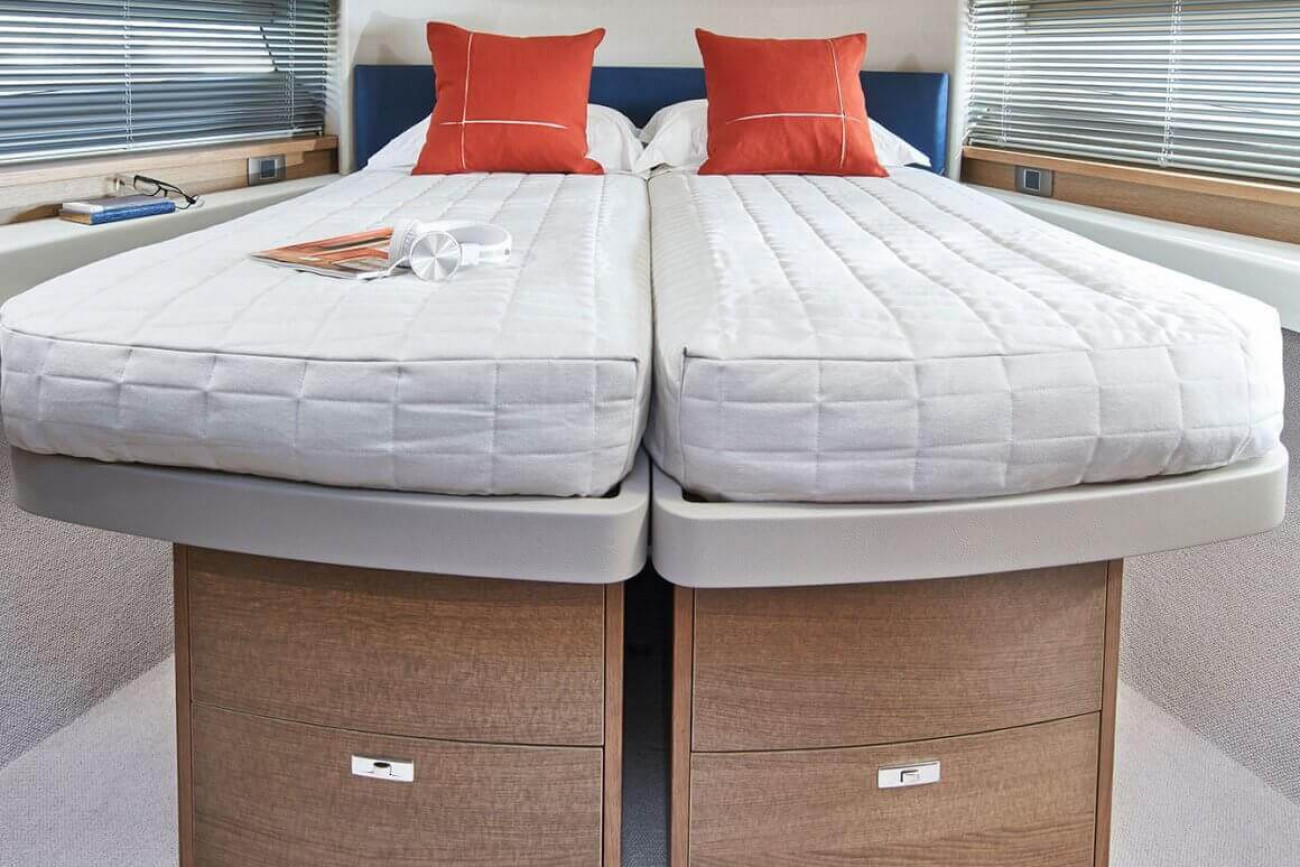

FORWARD GUEST CABIN
• Large double bed with drawers below (option of scissor berths)
• Wardrobe with shelves
• Dressing table
• Mirror
• Storage lockers and drawers
• Opening porthole with venetian blind
• Deck hatch
• LED overhead (24V)
• Individual berth lights
• 220/240v outlets (2)
• USB connection point
• Fitted carpet

EN-SUITE BATHROOM
• Washbasin with Solid Surface worktop
• Mirror
• Storage lockers
• Shower compartment with automatic pump out
• Extractor fan
• Opening porthole and venetian blind
• LED overhead and concealed lighting (24V)
• Bathroom accessories
• Tiled flooring in Solid Surface
• Day access door from passageway

POWER AND DRIVE SYSTEM
• Twin Volvo IPS (2 x 435mhp driving contra rotating propellers via pod drive)
• Engine room lighting
• Engine room access hatch and ladder
• Power-assisted electronic steering system with hydraulic backup
• Trim tabs with indicators
• Electronic engine controls
• Joystick manoeuvring system
• Volvo IPS active corrosion protection system for pod drive
• Engine room extractor fan with electronic time delay

ELECTRICAL SYSTEMS
24 VOLT:
• 4 x heavy-duty batteries for engine starting
• 4 x heavy-duty auxiliary batteries
• Battery link facility with remote control at helm position
• All battery banks are charged using a voltage sensitive relay that parallels all batteries banks when a charging source is present
• 40-amp 24v battery charger
• Remote battery master switches with control switch at main switch panel
• Circuit breakers on all circuits
• 24v to 12v voltage dropper for certain navigation and radio circuits

220/240 VOLT:
• Shore support inlet
• Polarity check system
• Earth leakage safety trip
• Circuit breakers on all circuits
• Power points (240v) in: owner’s stateroom, guest cabin, galley and saloon area
• Shaver points in all bathrooms

FUEL SYSTEM
• Twin fuel tanks (in NS8 marine grade alloy) with interconnection system
giving 286 gallons/343 US gallons (1300 litres) capacity
• Fuel fillers on port and starboard side decks
• High-capacity duplex fuel filters with water traps and change-over valves, water warning sensors connected to warning lights at lower helm
• Remote fuel cocks in cockpit locker
• Fuel gauges at main helm console

WATER SYSTEM
• Water tank of 93 gallons/112 US gallons (423 litres) plus 7 gallon/8 US gallon (32 litres) hot water calorifier (total 100 gallons/120 US gallons/455 litres)
• Water heated by engines and 240v immersion heater
• Automatic water pump with filter
• Main circuit breaker at switch panel
• Water level gauge
• Deck filler
• Electric quiet flush WC system with 33 gallons/40 US gallons/150 litres holding tank, contents gauge, manual overboard discharge and dockside discharge

FIRE EXTINGUISHERS
• Automatic/manual override fire extinguishers in engine room with warning system at Flybridge and Lower Helm Position
• Hand operated fire extinguishers (4) in owner’s stateroom and forward guest cabin, galley and lower helm position

BILGE PUMPS
• Automatic electric bilge pumps (with manual override) in engine room(2) and forward accommodation (2)
• High-capacity manual bilge pump with valve system and suction points in same areas
• Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm

0THER STANDARD EQUIPMENT
• Ensign staff
• Fenders (4)
• Mooring warps (4)
• First Aid kit
• Tool kit
• Owner’s manual and engine manual
• Quilted mattress cover supplied to all cabins
• Ship’s document case
• Boat hook
• Anchor winch back up handle

FINISHES
• Teak-laid decks to Transom platform, steps to side decks and steps to flybridge
• Timber-laid floor to galley
• Furniture in choice of Rovere oak, Alba oak or walnut with satin or gloss finishes
• Solid Surface tiled floors in all bathroom suites in guest accommodation
• Solid Surface wash hand basin counter tops in all bathroom suites in guest accommodation
• Galley worktop in Solid Surface
• Choice of high quality carpet and fabrics from the Quartz VII range
• Blinds or sunscreens to all windows and portholes

Please note the right is reserved to add modify or delete from this preliminary specification.
