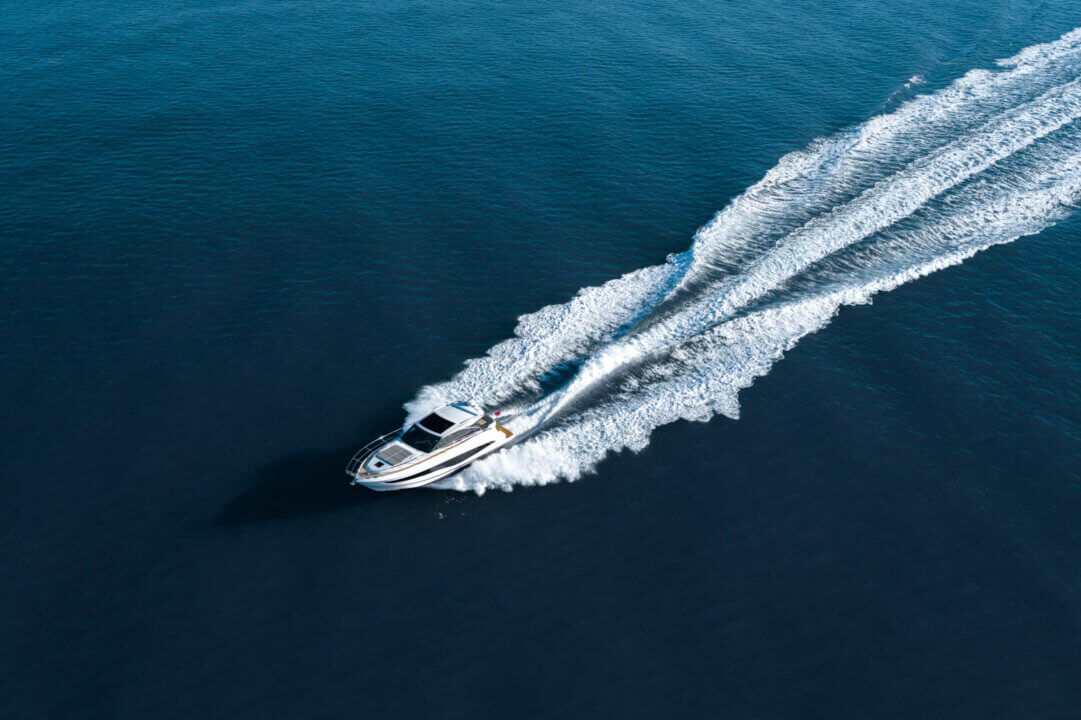

PRINCESS V50

DECK FITTINGS
• Teak-laid transom platform, transom steps, cockpit deck and steps to side deck
• Reversible electric anchor winch with foredeck and helm position controls
• Self-stowing anchor system incorporating one 20kg/44lb Delta galvanised steel anchor with 40m galvanised 9.5mm gauge chain
• Stemhead roller with automatic anchor launch and retrieve
• Stainless-steel bow, stern and spring cleats
• Stainless-steel bow fairleads
• Stainless-steel pulpit and guardrails
• Stainless-steel coach roof handrails
• PVC rubbing band with stainless-steel insert
• Illuminated crown logo to transom
• Full set of IMCO navigation lights
• Riding light
• Remote control searchlight
• Single electric horn
• Fuel and water fillers
• Holding tank dockside discharge connection
• Deck hatch access to chain locker with fender stowage rack
• Foredeck escape hatch
• Foredeck drinks holders (4)
• Ensign socket

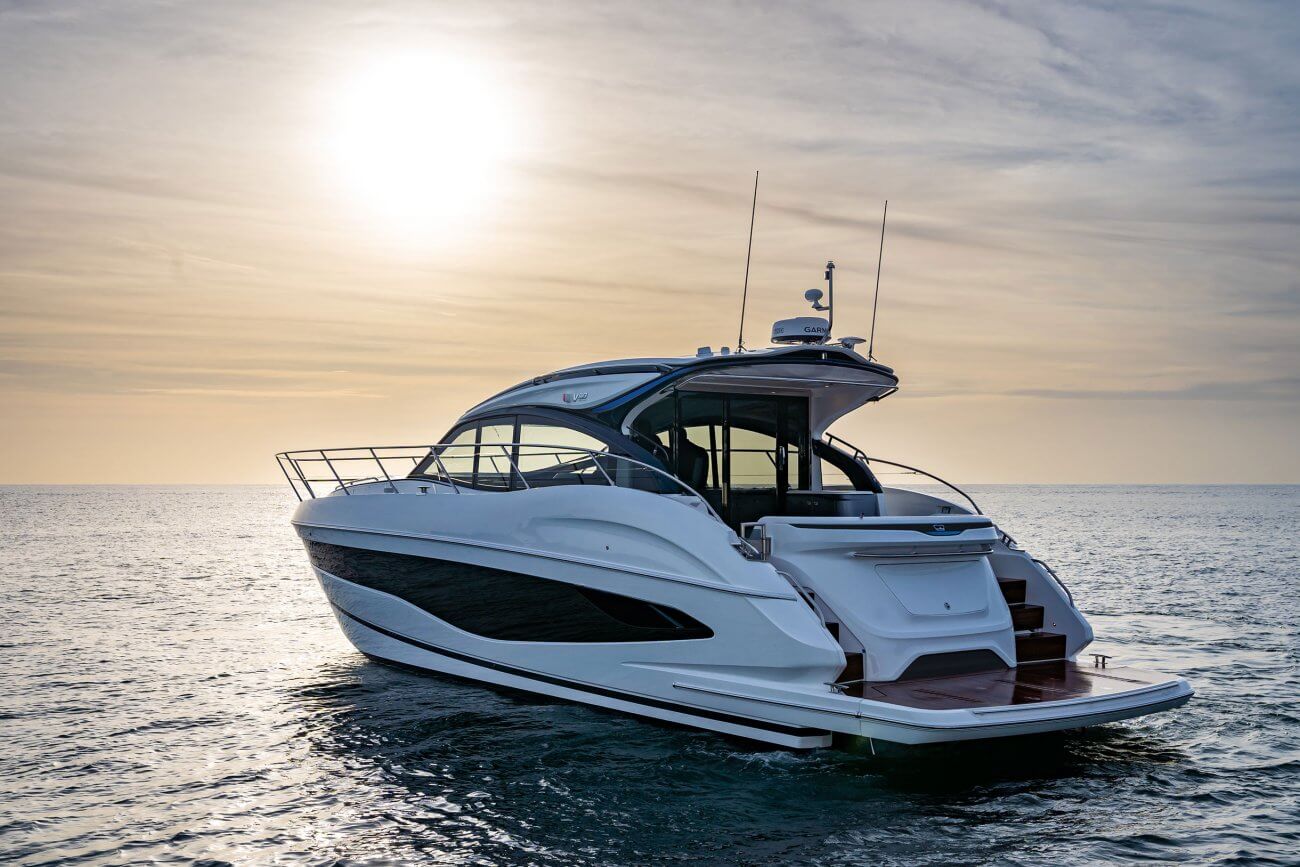

AFT COCKPIT AND BATHING PLATFORM
• Self-draining
• Upholstered aft U-shaped & forward L-shaped seating/dining area (optional seat infill)
• Cup holders to L-shaped seating (2)
• Folding teak dining table
• LED Overhead and low deck level lighting
• Cockpit cover
• Stainless-steel handrails
• Lockable transom hatch to stern lazarette with gas strut assistance
• Lockable access hatch to engine room
• 220/240v shore support inlet in locker
• Life raft stowage locker
• Transom bathing platform with integrated foldaway swimming ladder (with optional electro-hydraulic raise/lower mechanism – note when this option is selected it includes transom steps to access stern from bathing platform when in lowered position)
• Port & starboard transom gates leading to bathing platform
• New style hot and cold transom shower
• Storage lockers
• Waterproof speakers linked to saloon sound system
• Fender stowage rack in engine room/lazarette
• Seat locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguisher

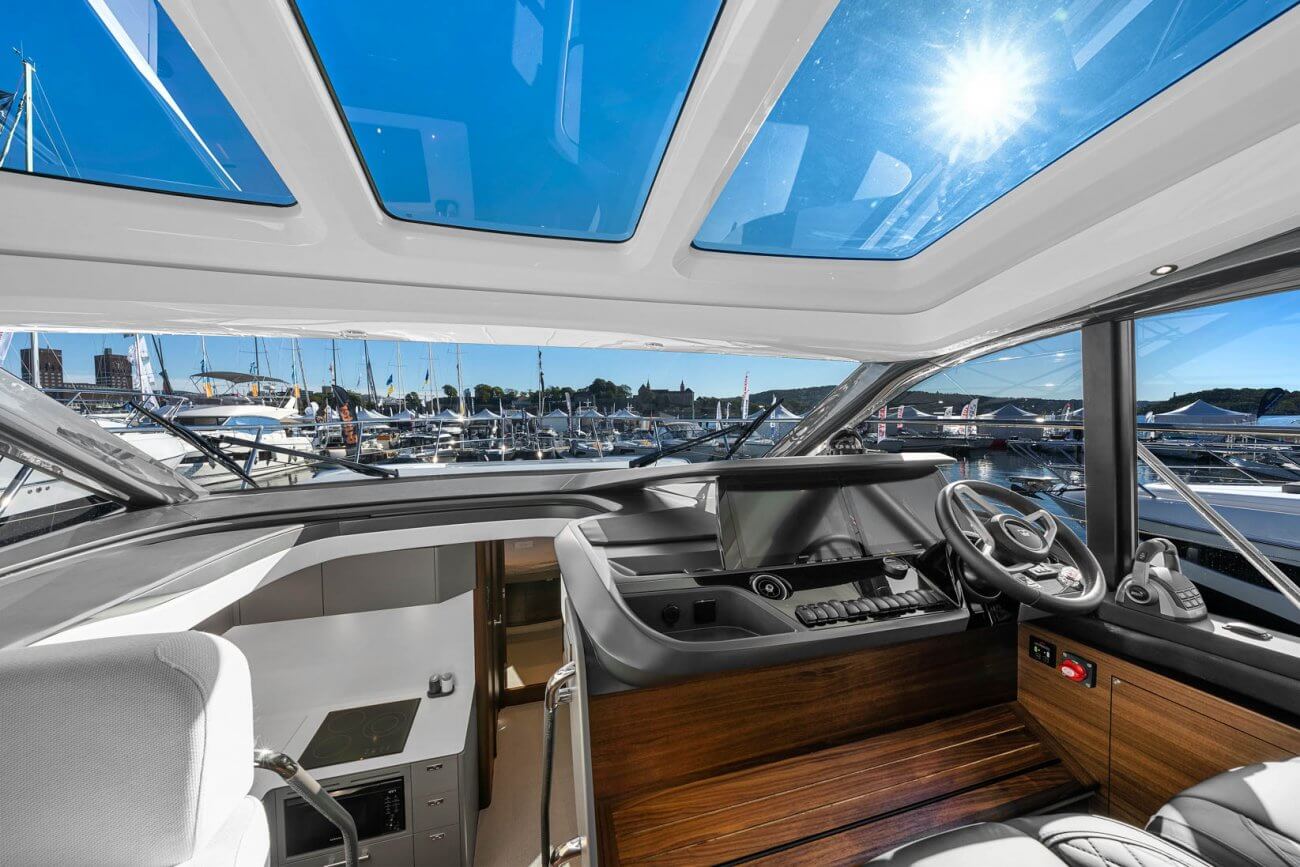

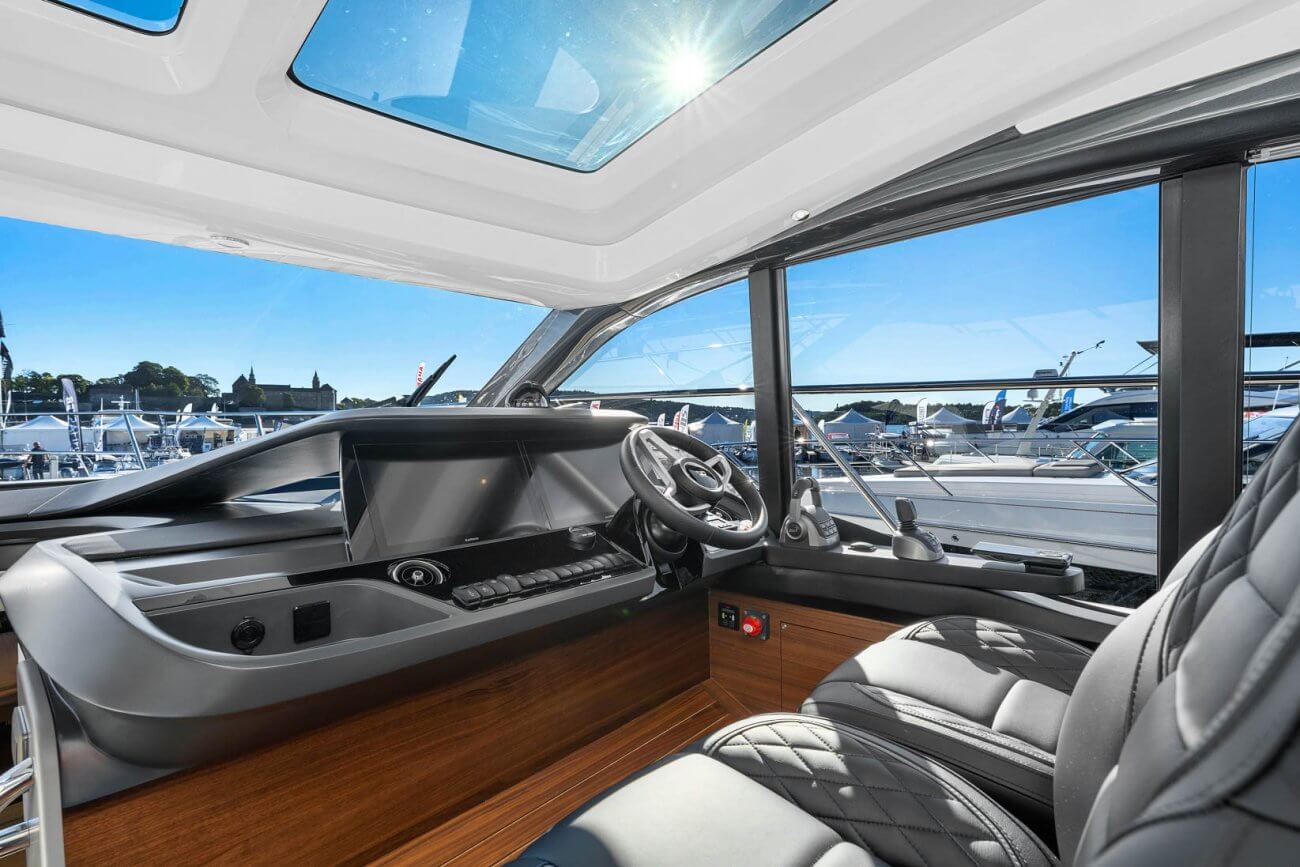

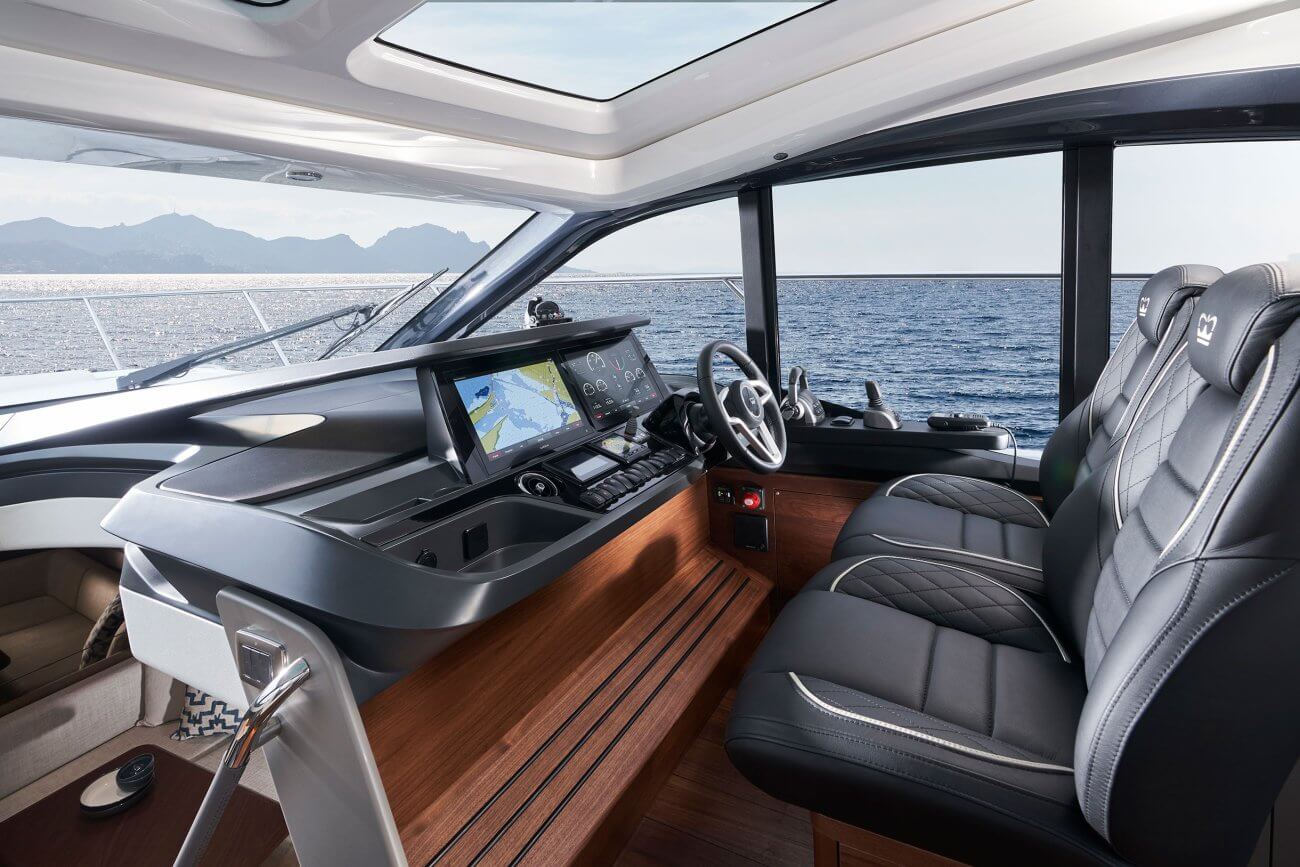

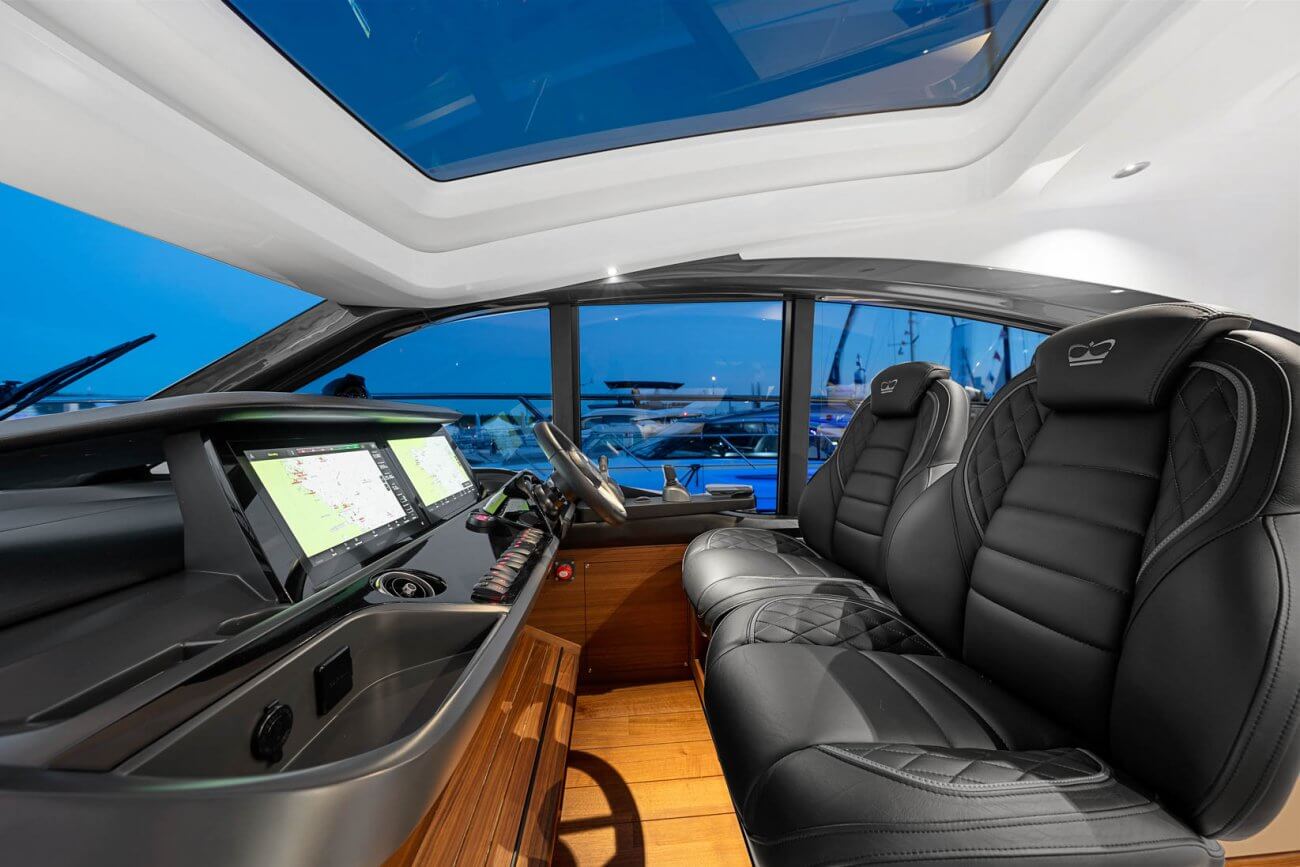

HELM POSITION
• Twin upholstered seats, manually adjustable helm seat (fore/aft), fixed position navigator seat
• Volvo/Garmin 16” MFD, incorporating GPS chart plotter, engine instrumentation, fuel gauges, alarms & steering angle indicator.
• Electronic engine controls with integrated trim control

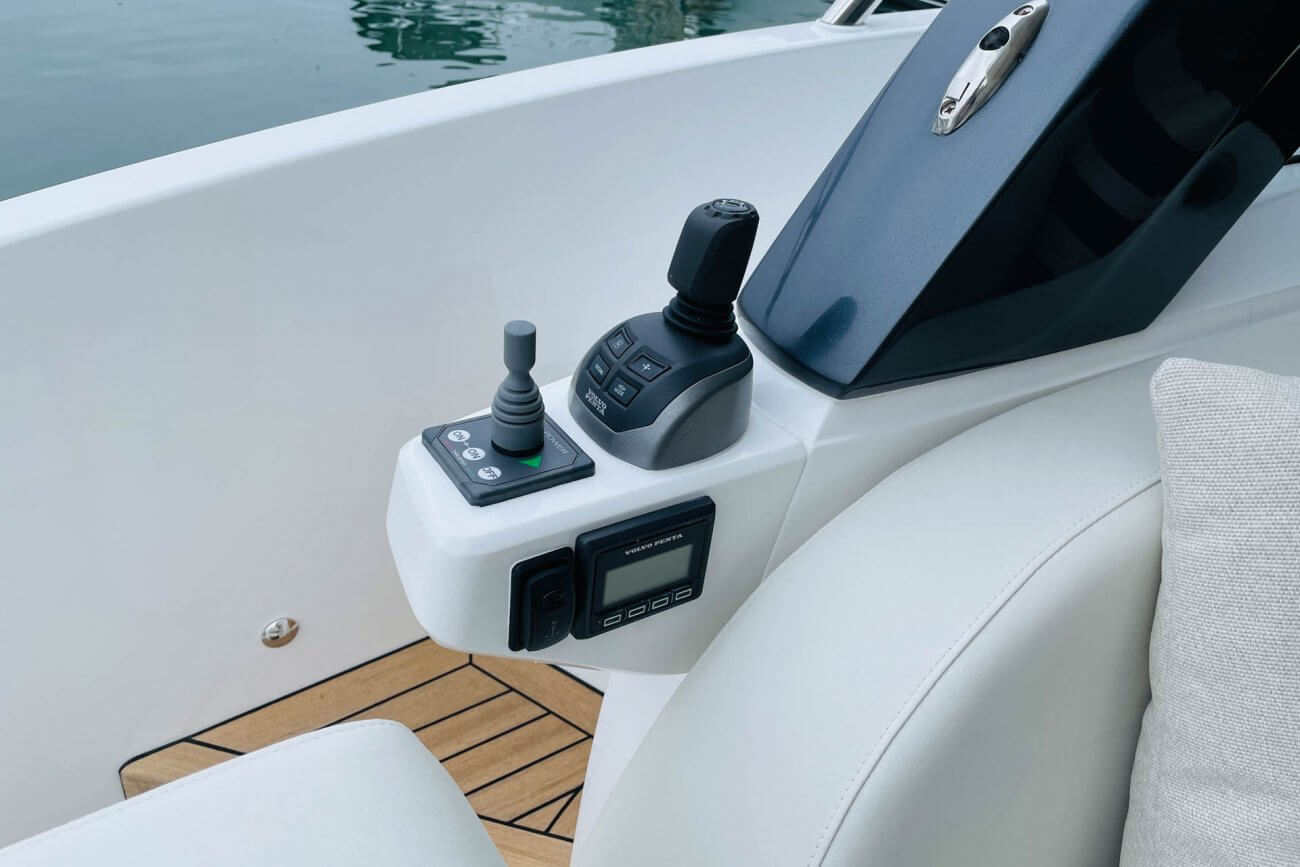

• Joystick manoeuvring control
• Power-assisted electric steering system and adjustable steering wheel
• VHF with DSC R/T with intercom
• Speed and distance log with sea temperature (integrated into Volvo/Garmin display)
• Echo sounder with alarm (integrated into Volvo/Garmin display)
• Single remote-control searchlight
• High speed magnetic compass
• Horn button to operate single electric horn
• Twin windscreen wipers
• Windscreen freshwater pressure wash
• Bilge pump controls with audible and visual alarm for bilge pumps (3)
• Electric drop window to starboard side
• Electric anchor winch with remote control
• Audible and visual alarm warning system (integrated into Volvo/Garmin display)
• Autopilot (integrated into Volvo/Garmin display)
• Engine room fire extinguisher warning system
• Drinks holder (2) at console, with additional drink holder (1) at base of navigator seat
• Toughened un-tinted glass screen
• Black mesh sunscreens for exterior use
• USB connection points
• Riding light, helm and nav light control switches
• Timber laid flooring

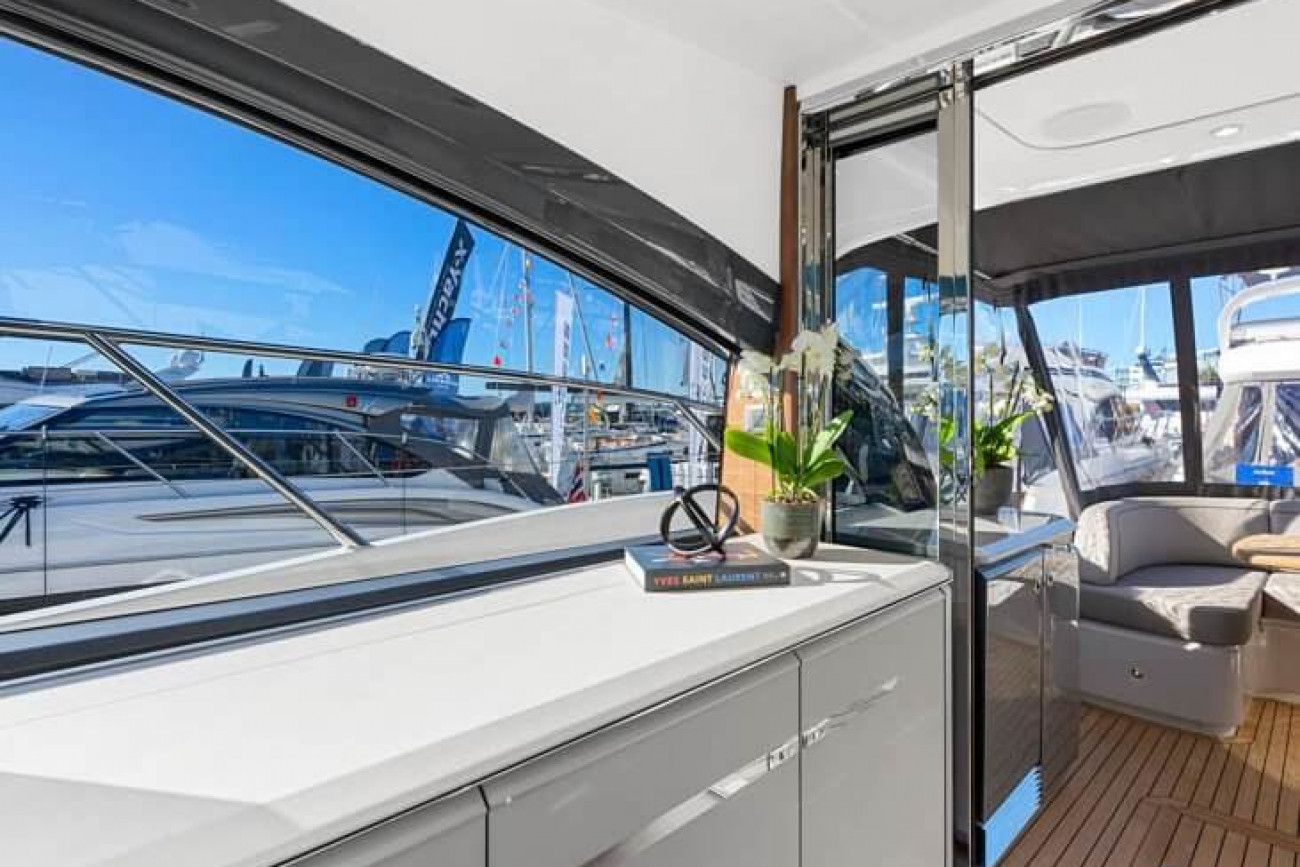

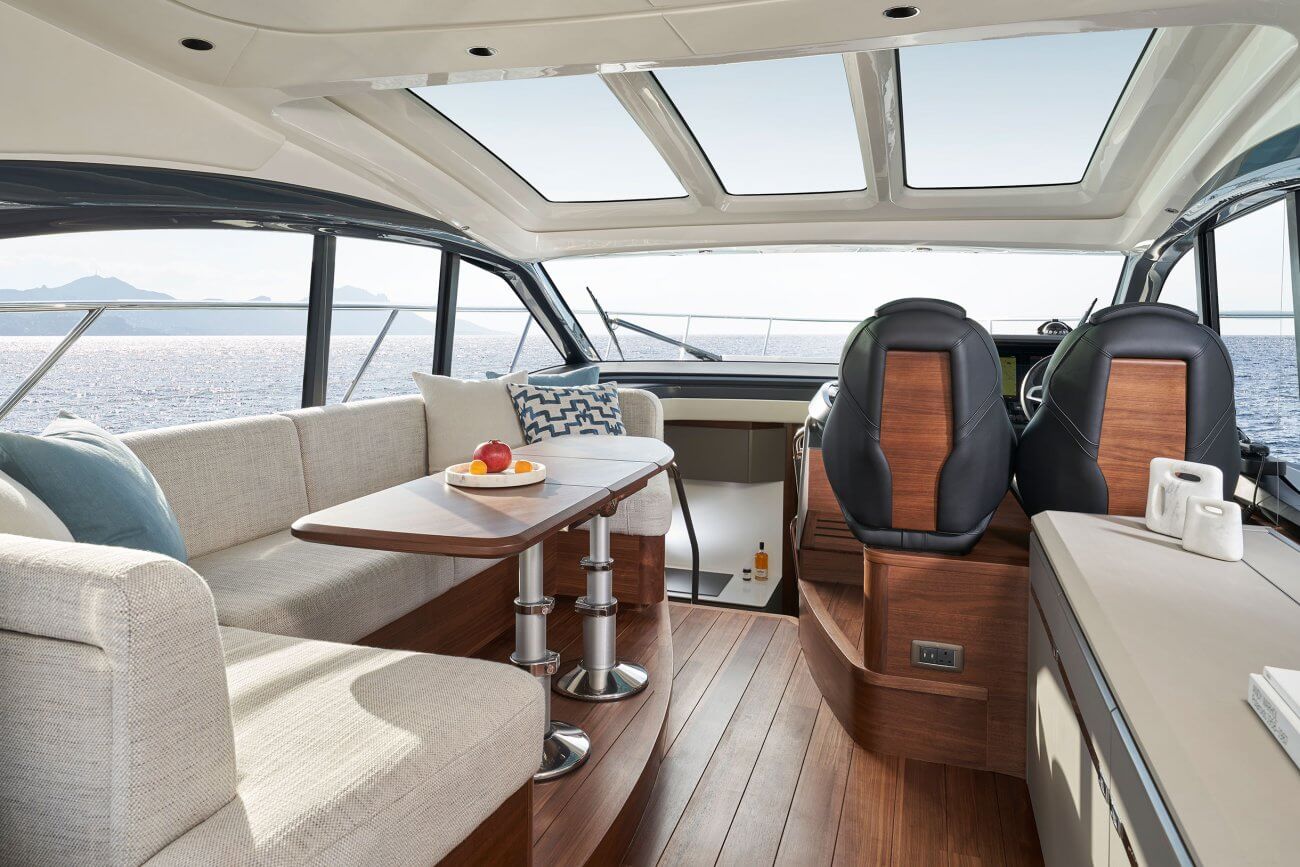

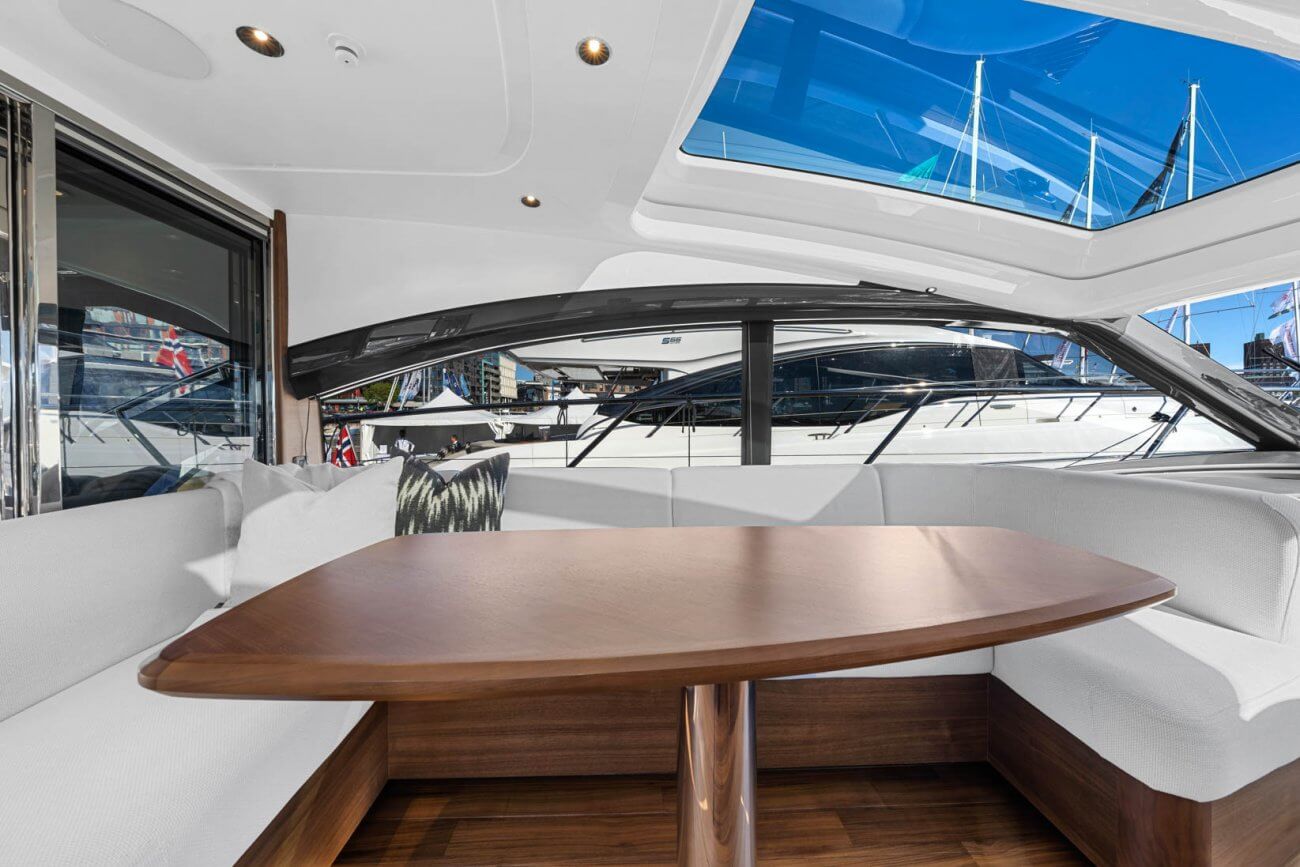

DECK SALOON
• U-shaped sofa with drawers
• Dining table
• Sideboard
• Refrigerator
• Curtains, blinds or sunscreens to all windows and doors
• LED overhead downlighters

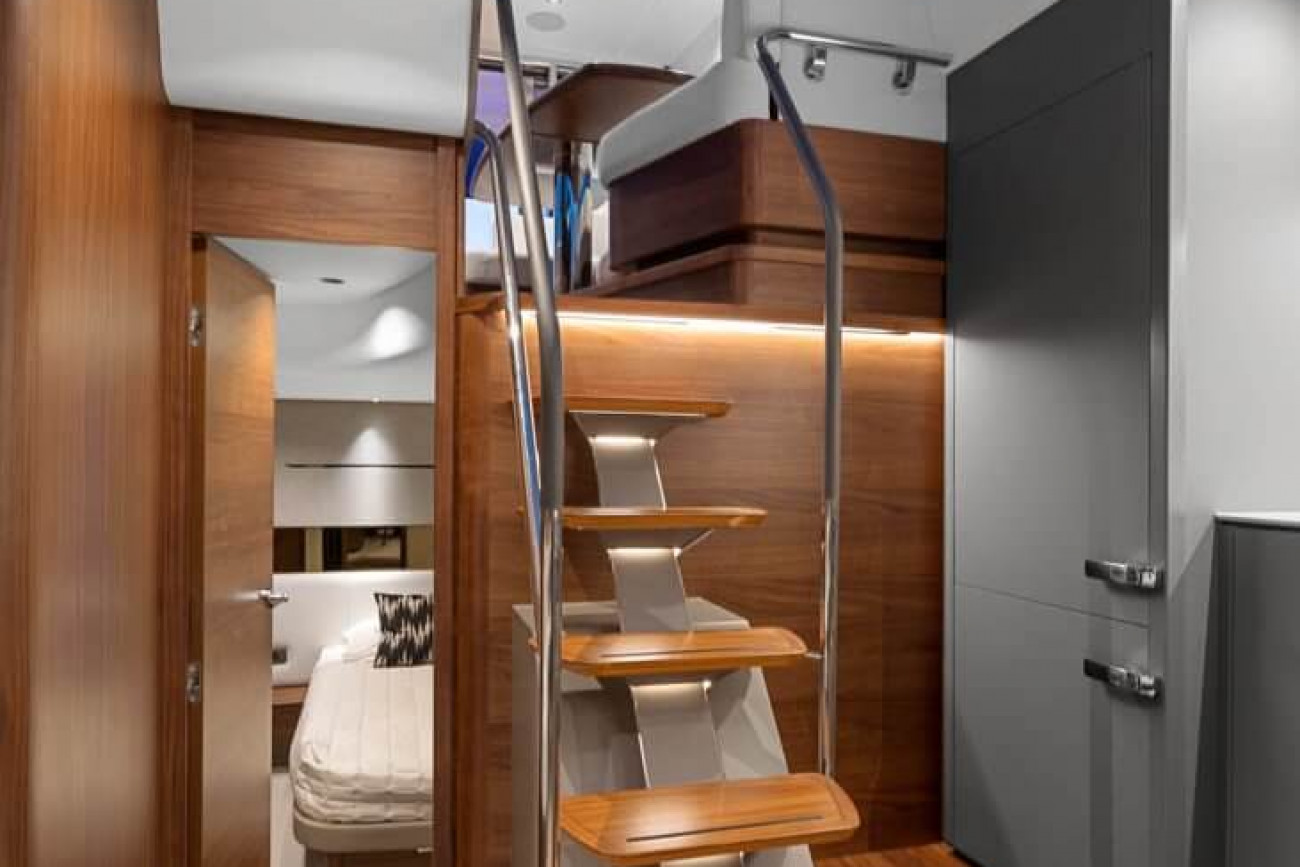

• Access stairway to lower accommodation
• Electric opening roof
• Triple stainless-steel framed sliding doors to cockpit
• Fusion Apollo RA-670 audio unit (with external USB connection) with Wifi and Bluetooth connected to saloon Fusion 6” CL602 (2) speakers and cockpit speakers
• Timber flooring
• 2x 220/240v outlets
• 2x USB charging points

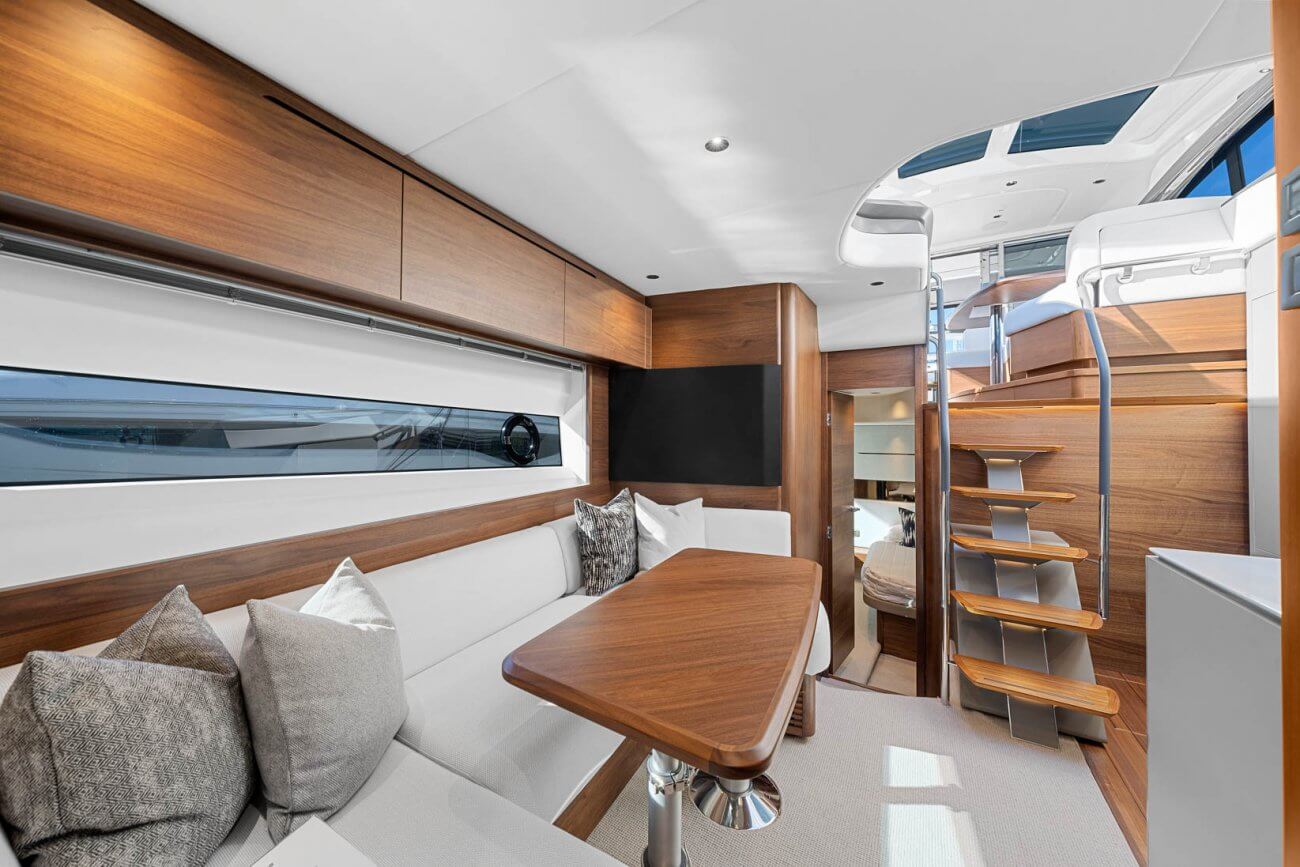

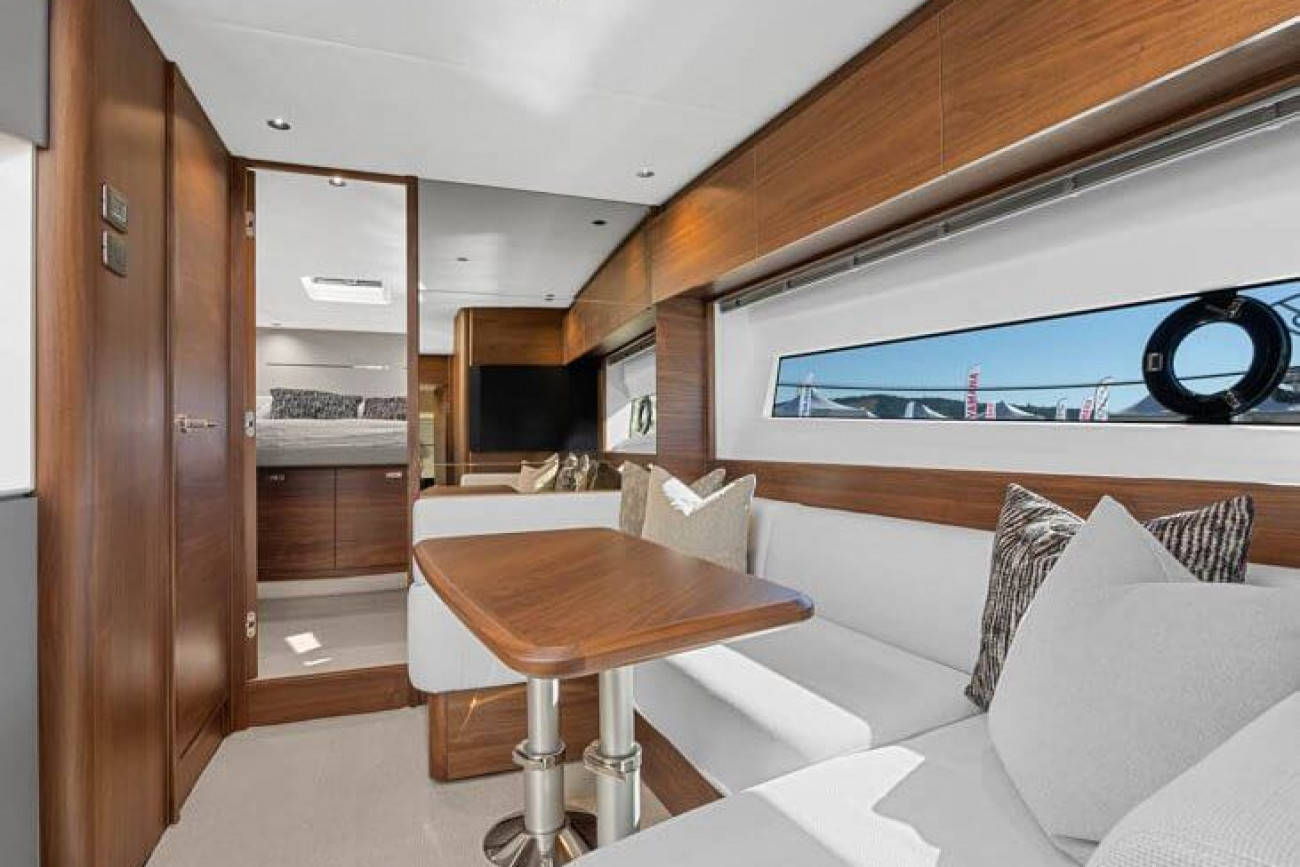

LOWER SALOON
• U-shaped sofa with single drawer and top loading storage (top loading storage is occupied by A/C unit when option is specified)
• Table
• Storage lockers
• LED overhead downlighters
• 24/240v main electrical control panel with battery isolation switches
• Fusion Apollo RA-670 audio unit (with external USB connection) with Fusion 6” CL602 (2) speakers
• Window with opening portlight (1) with manual tension venetian blinds
• Thermal heat alarm
• 1x 220/240v outlets
• 2x USB charging points

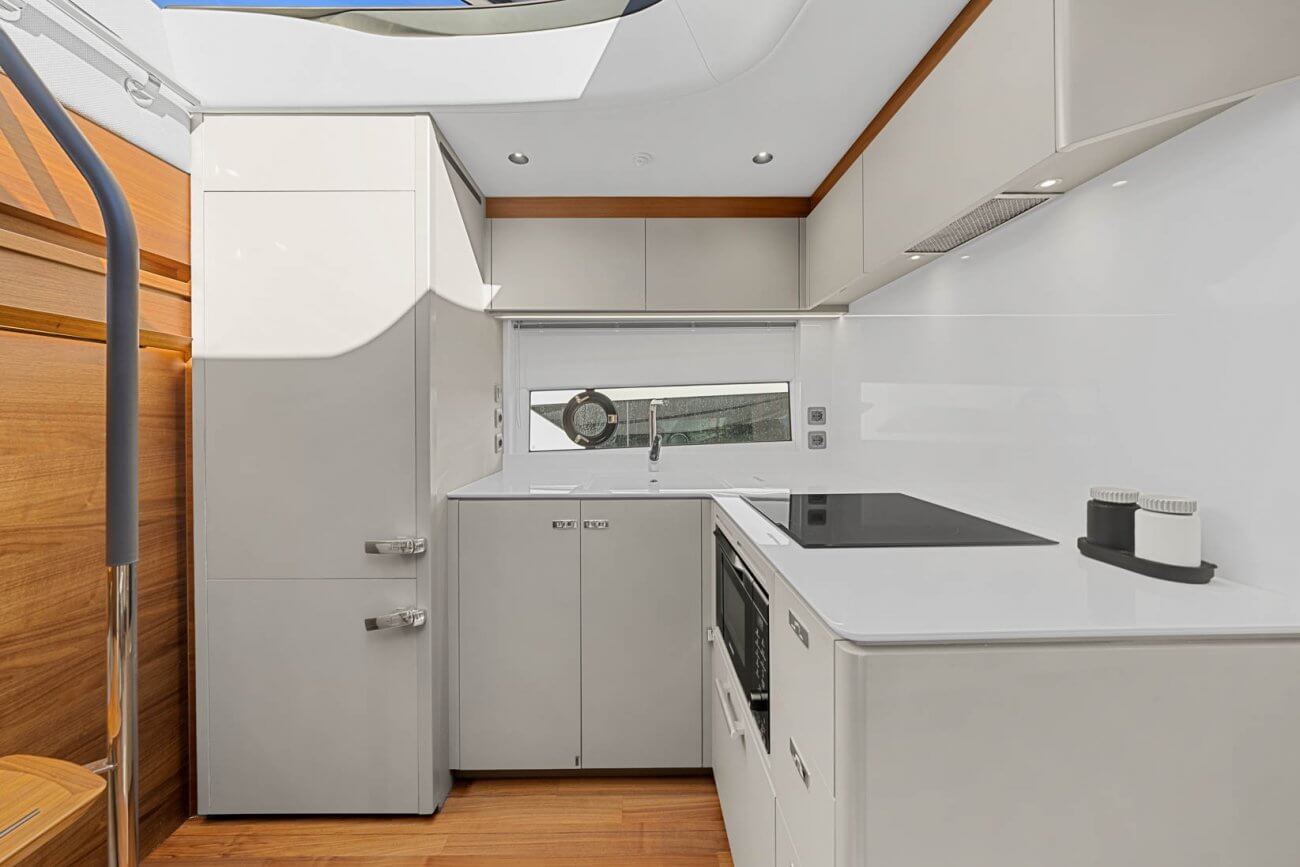

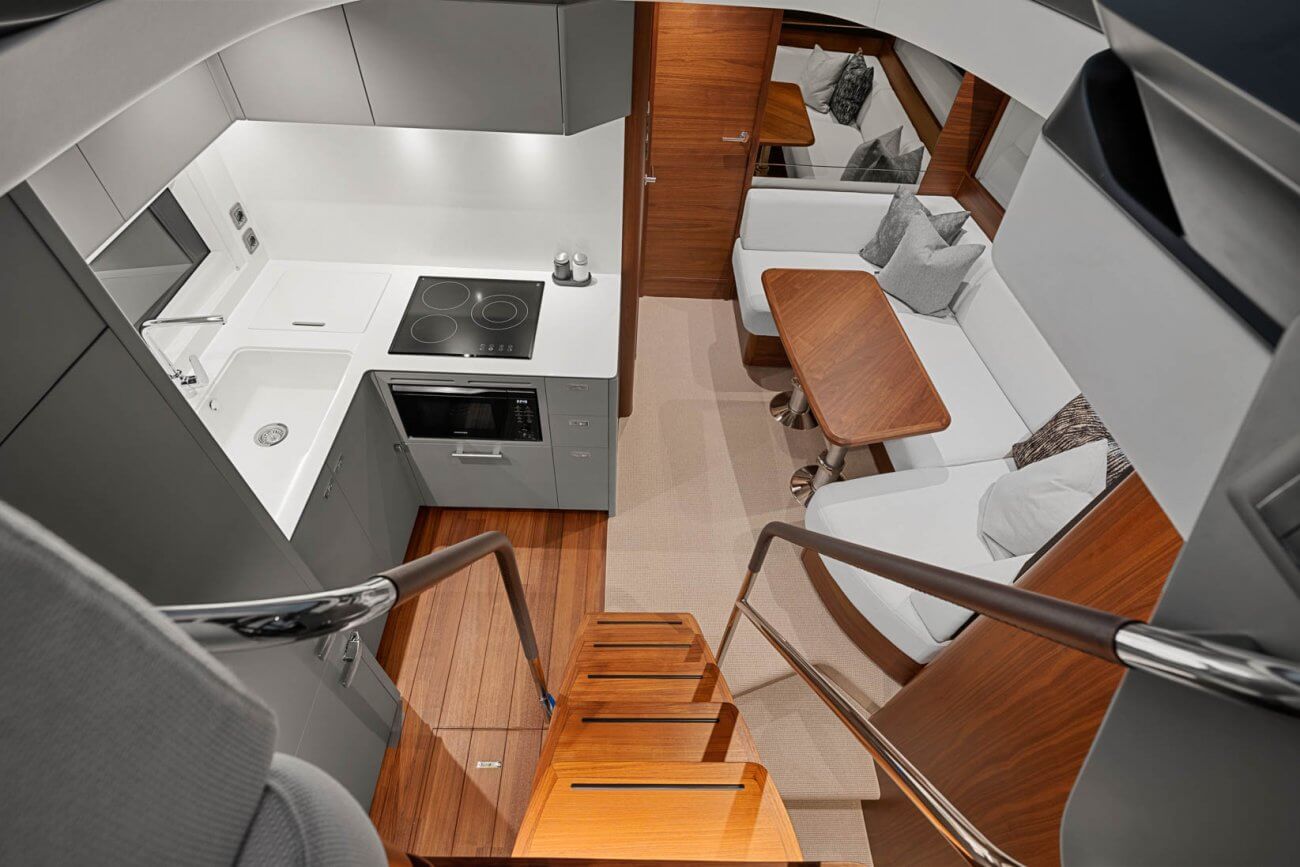

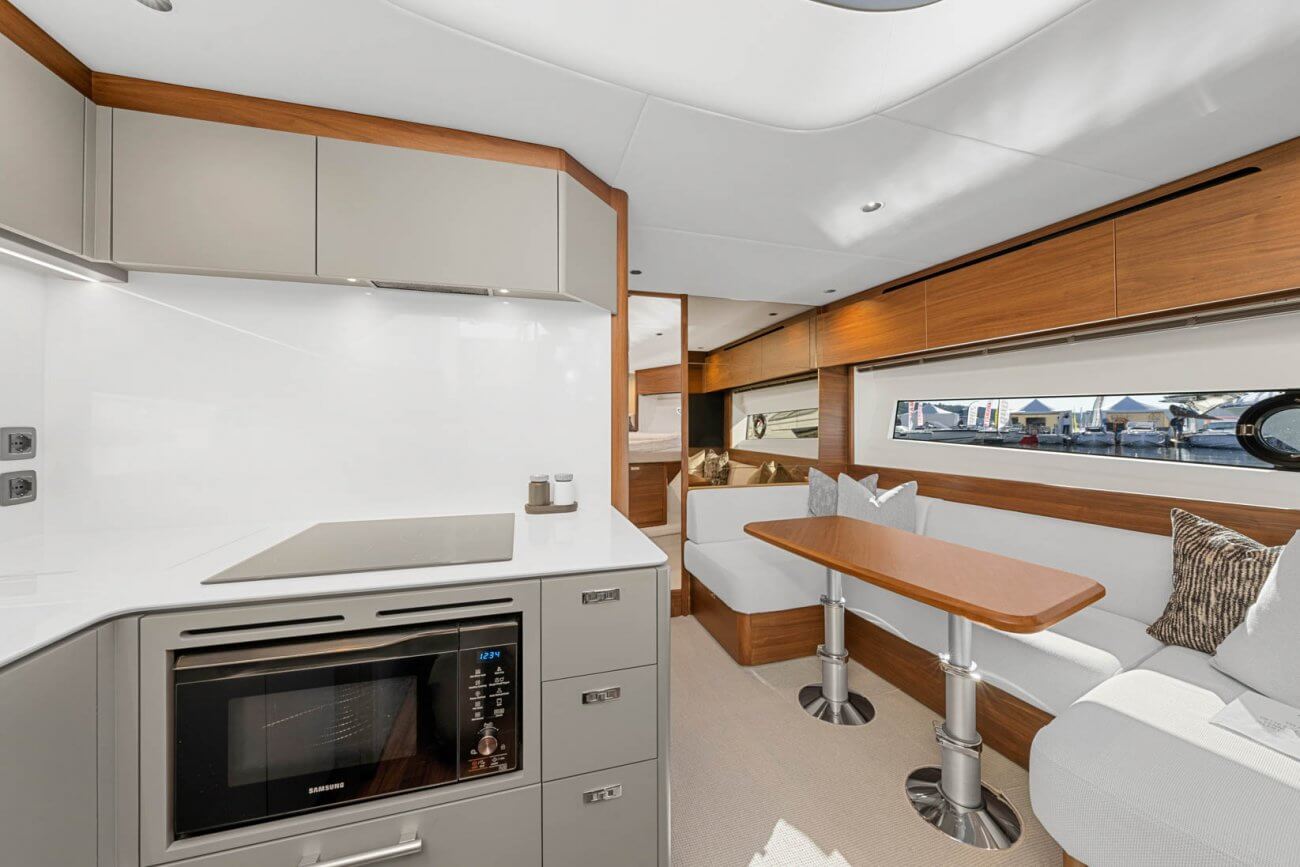

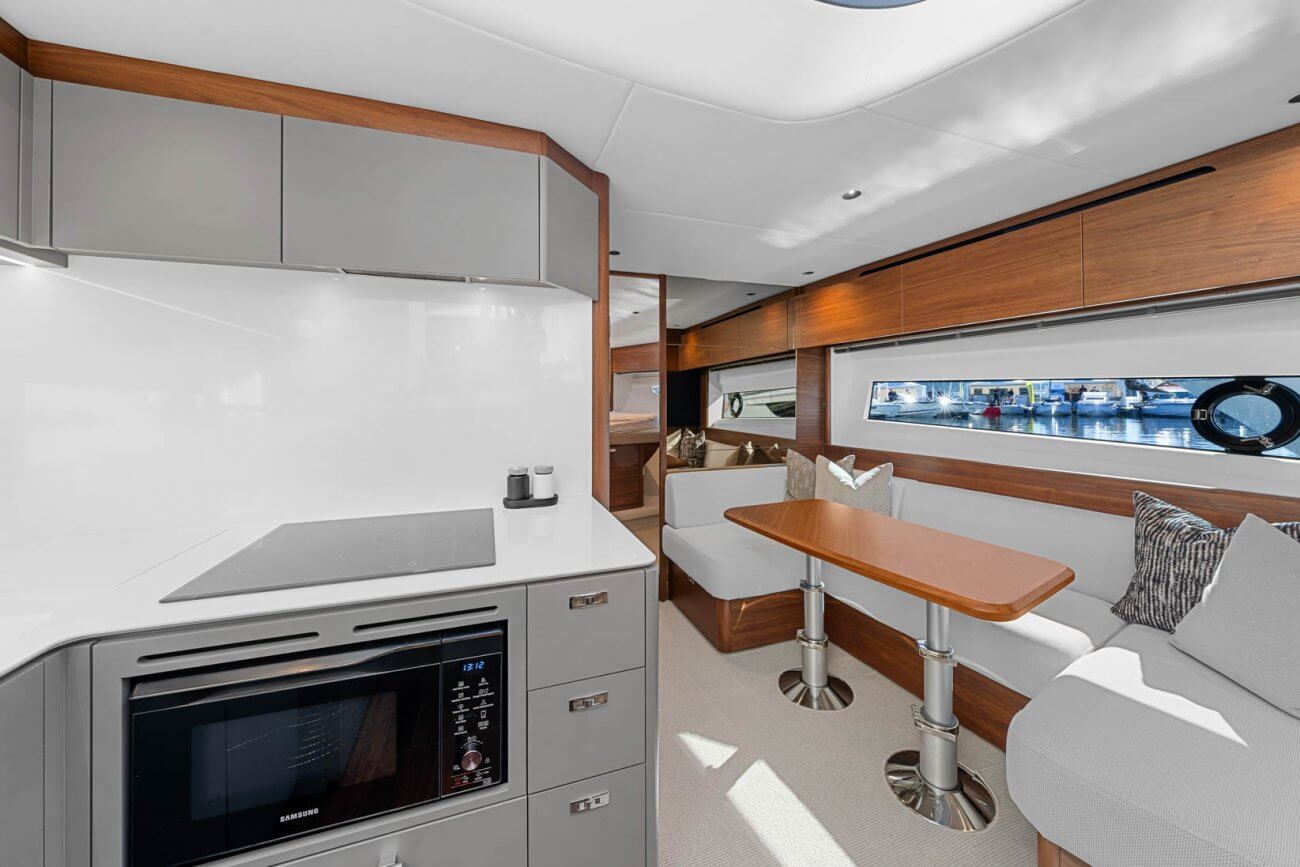

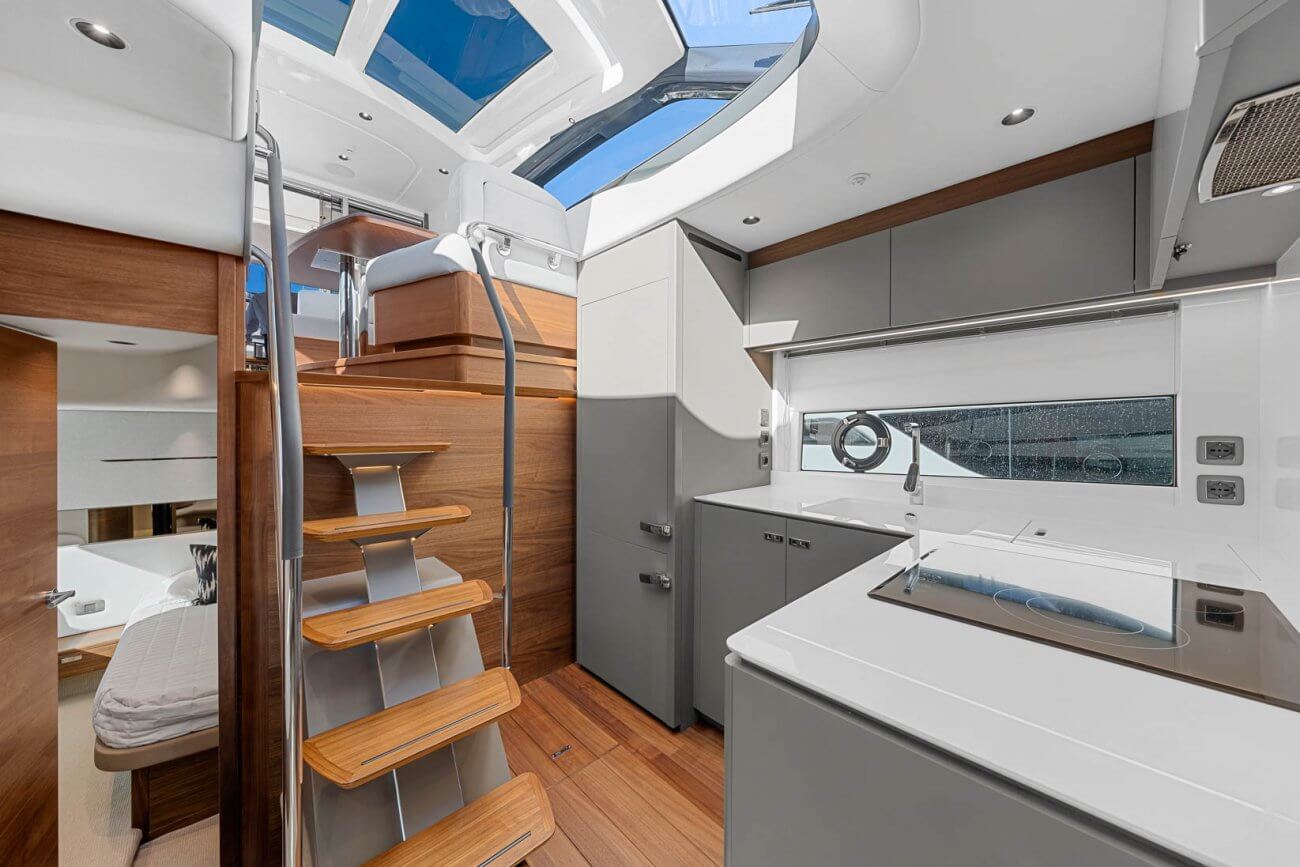

GALLEY
• Sylmar white Solid Surface worktop
• 2 ring ceramic hob
• Sylmar white Solid surface sink with Monobloc mixer tap (remains white for all options)
• Combination microwave/oven with grill
• Full height 270 litre fridge freezer, with deep freeze drawers
• Waste bin
• High/low storage cupboards, drawers and lockers
• Timber-laid flooring
• Window with opening portlight and manual tension venetian blind
• Hob extractor fan
• Cutlery & crockery storage
• Chopping board
• 220/240V power outlets (4)
• LED overhead task lighting (24v), concealed light & night lighting
• Storage bin under galley sole

ACCOMMODATION
• All cabins and bathrooms feature opening portholes
• All cabins feature 220/240v power points
• All bathrooms feature electric freshwater toilets and 240v shaver points

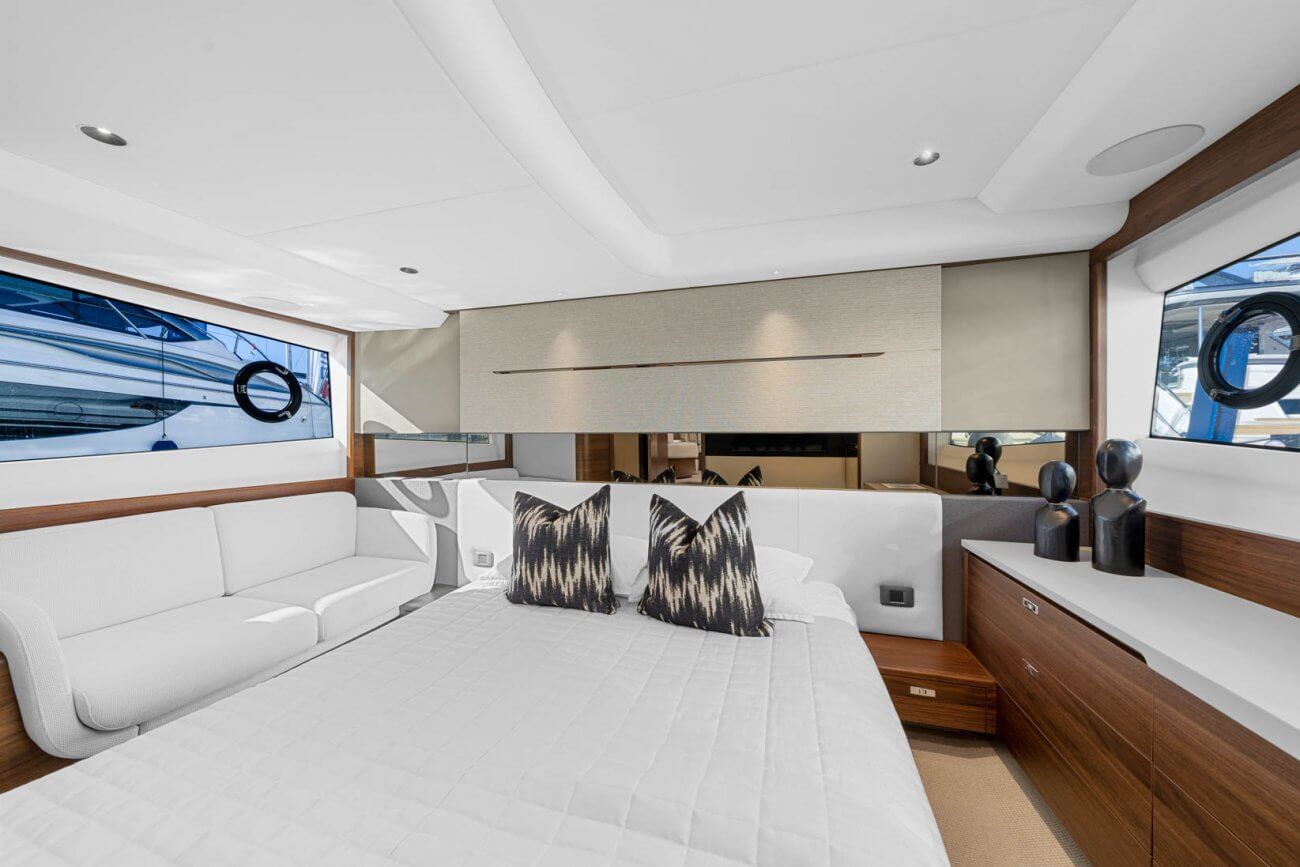

MASTER STATEROOM
• Large double bed with bedside tables and drawers below
• Wardrobe with shelves & full-length mirror
• Drawers and storage lockers
• Sideboard
• LED overhead and individual berth lights (24v)
• Starboard side sofa
• Panoramic windows in toughened glass with opening ports and manual tension venetian blinds
• Fitted carpet
• 4x USB charging points
• 2x 220/240v outlets

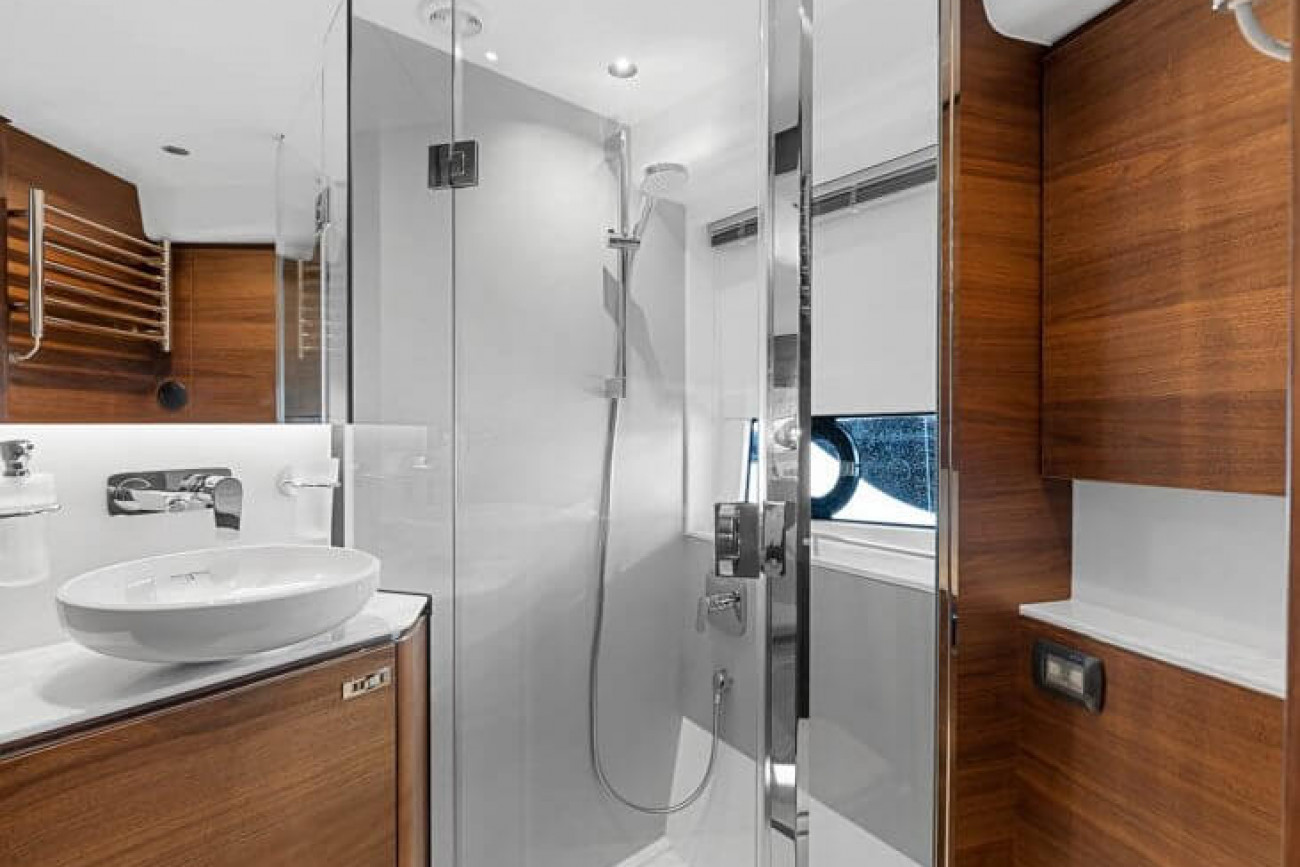

EN-SUITE BATHROOM
• Solid Surface worktop
• Wash basin with Monobloc mixer tap
• Separate stall shower with extractor fan and auto pump out
• Mirror
• LED overhead and concealed lighting (24v)
• Storage locker
• Window with opening portlight and manual tension venetian blinds
• Solid Surface flooring
• Bathroom accessories
• 220/240v shaver socket

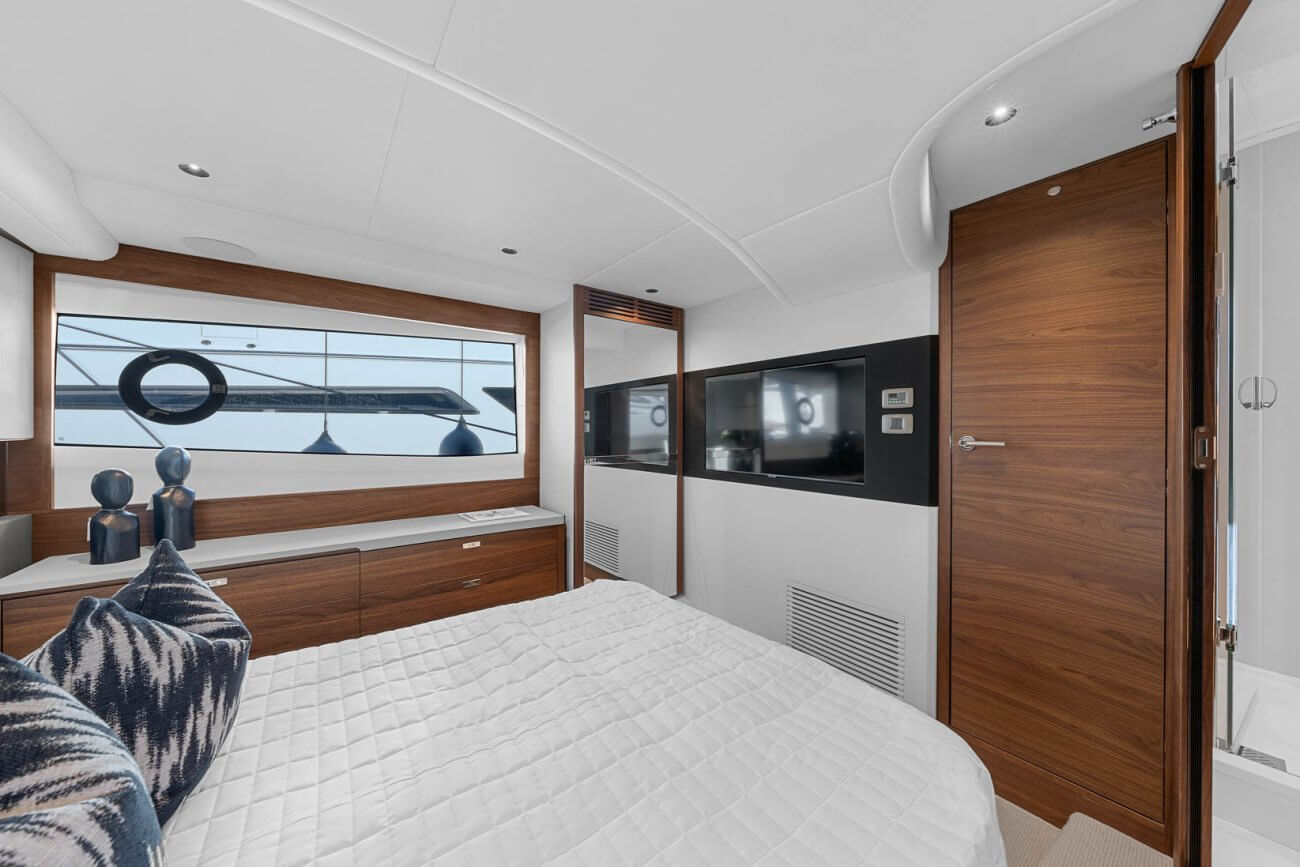

FORWARD STATEROOM
• Large double bed with drawers below (option of scissor berths)
• Wardrobe with full length mirror
• Deck hatch
• Storage lockers
• LED overhead (24v)
• Window with opening portlights and manual tension venetian blinds
• 1x 220/240v outlets
• 2x USB connection points
• Fitted carpets

EN-SUITE BATHROOM
• Solid Surface worktops
• Wash basin with Monobloc mixer tap
• Separate stall shower with extractor fan & automatic pump out
• Mirror
• LED overhead and concealed lighting (24v)
• Storage locker
• Window with opening portlight and manual tension venetian blinds
• Solid Surface flooring
• Bathroom accessories
• 220/240v shaver socket

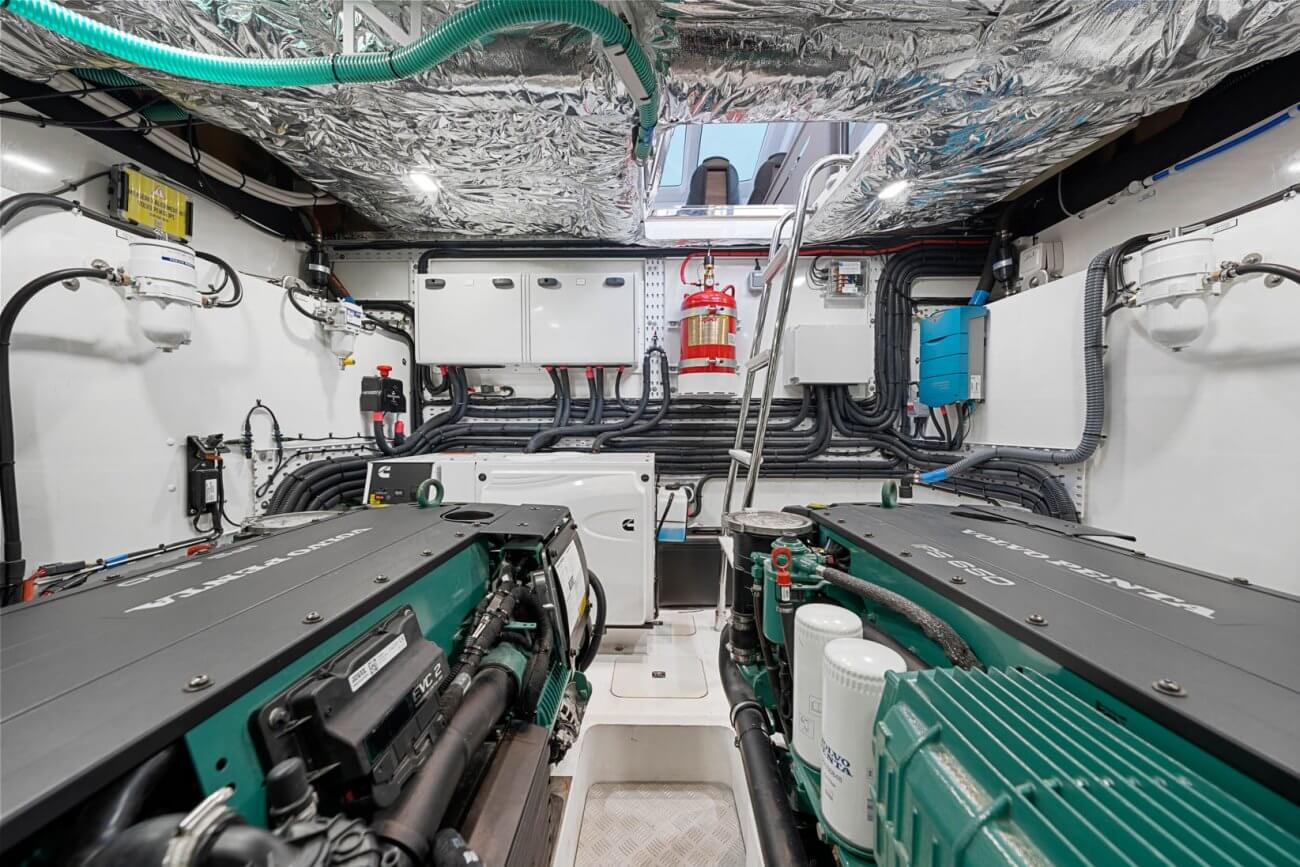

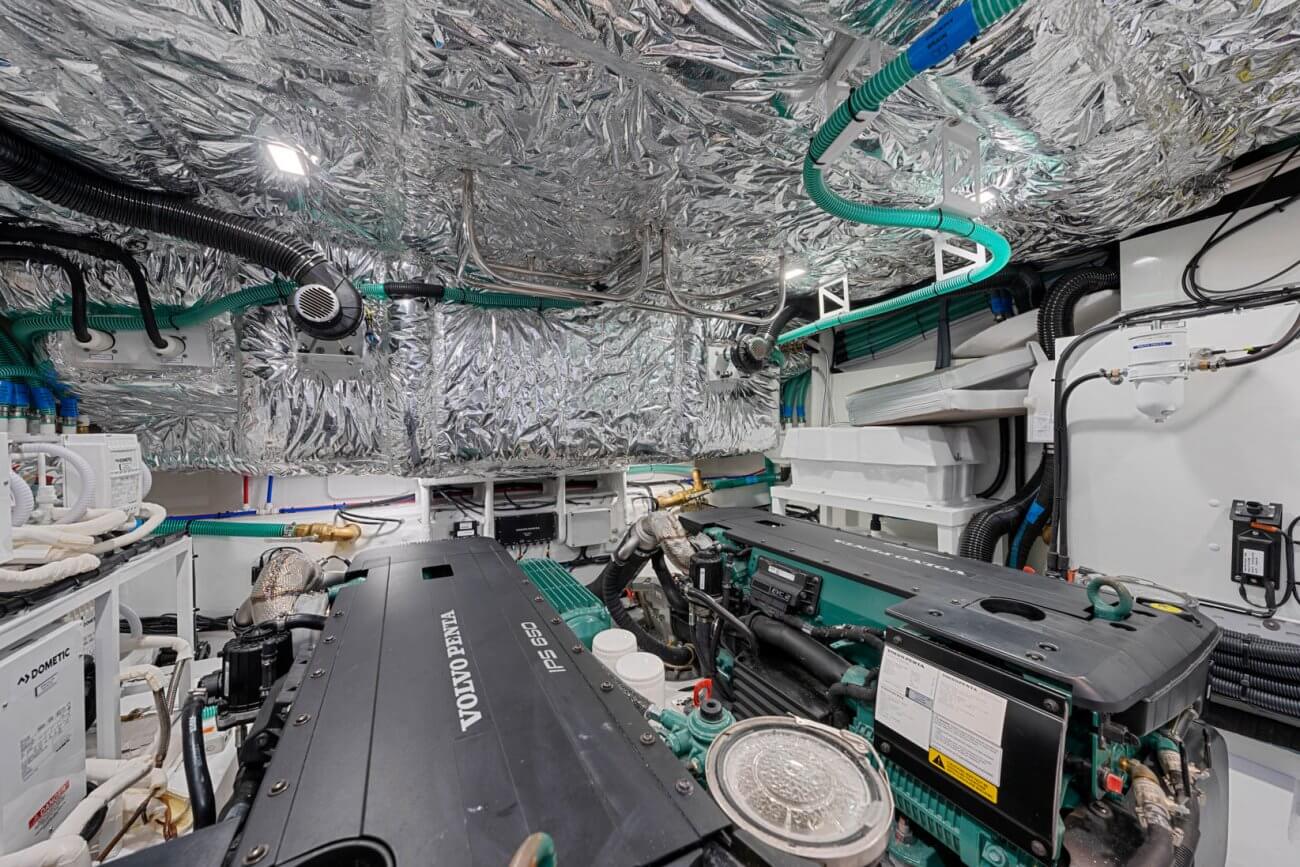

POWER AND DRIVE SYSTEM
• Twin Volvo IPS engines (driving contra rotating propellers via pod drive)
• Power-assisted steering (electrical)
• Electronic engine controls
• Joystick manoeuvring system
• Volvo active corrosion protection system for pod drive
• Engine room extractor fans with electronic time delay
• Volvo interceptor trim system integrated into Volvo engine system (integrated into Volvo/Garmin display)
• Engine room lighting
• Access from cockpit hatch
• Fresh water supply point in engine room
• Engine room insulation
• High volume air intakes
• Engine beds integrally moulded with hull for strength and vibration absorption
• Bulkheads integrally bonded
• Engines flexibly mounted
• Automatic fire extinguisher with remote override
• Automatic/manual bilge pumps
• 24v to 12v converters for certain navigation and radio circuits

ELECTRICAL SYSTEMS
24 VOLT:
• 4 x heavy-duty batteries for engine starting
• 4 x heavy-duty auxiliary batteries
• Engine alternators charge via split charge relays to isolate engine start batteries from auxiliaries and ensure efficient charging of both battery banks.
• 40-amp 24v float battery charger
• Battery paralleling system (for engine start back-up)
• Remote battery master switches with control switch at main panel
• Circuit breakers on all circuits
• Galvanic isolation system

220/240 VOLT:
• Shore support inlet (32A)
• Power points in owner’s stateroom, forward guest cabin, galley, lower and upper saloon
• Polarity check system
• Earth leakage safety trip
• Shaver points in both bathrooms
• 4kW generator
• 12v battery charger

FUEL SYSTEM
• Twin fuel tanks (in NS8 marine grade alloy) with interconnection system
• Fuel fillers on both side decks
• High-capacity duplex fuel filters with water traps with change-over valves, water contamination warning integrated into Volvo/Garmin display (integrated into Volvo/Garmin display)
• Remote fuel cocks in cockpit seat locker for main engines & generator
• Fuel gauges integrated into Volvo/Garmin display

WATER SYSTEM
• Water capacity totalling 364 litres /80 gallons/96 US gallons plus 50 litres/ 11 gallon/13 US gallon hot water calorifier
• Water heated by engine and 240V immersion heater
• Automatic water pump with filter
• Pump main circuit breaker at AC/DC switch panel
• Water level gauge
• Deck filler
• Electric quiet flush freshwater WC system with holding tank, content gauge and low noise manual overboard discharge, as well as dockside discharge.
• Fire extinguishers

BILGE PUMPS
• Automatic electric bilge pumps with manual override (3 in all)
• High-capacity manual bilge pump in cockpit seat locker with valve system and suction points in engine room and accommodation space
• Electric bilge pumps to have controls, warning lights with audible alarm and “pump out” isolation at helm

0THER STANDARD EQUIPMENT
• Fenders (6)
• Mooring warps (4)
• First aid kit
• Boat hook
• Quilted bedspreads for both cabins
• Tool kit
• Owner’s manual and engine manual
• Anchor winch backup handle
• Ensign staff
• Set of towels
• Ships document case

FINISHES
• Furniture finished in a choice of Rovere oak and Alba oak in satin lacquer finish as standard. Silver oak or walnut in satin or gloss lacquer finish available as an option.
• Galley and bathroom worktops in Solid Surface
• Timber-laid galley, saloon & helm floors
• Bathroom floors in Solid Surface
• Manual tension venetian blinds to all windows and portholes, curtains to saloon doors
• Teak laid decks to transom platform, transom steps, cockpit deck and steps to side deck
• Choice of high-quality carpets & upholstery fabrics from extensive range

Please note the right is reserved to add modify or delete from this preliminary specification.
